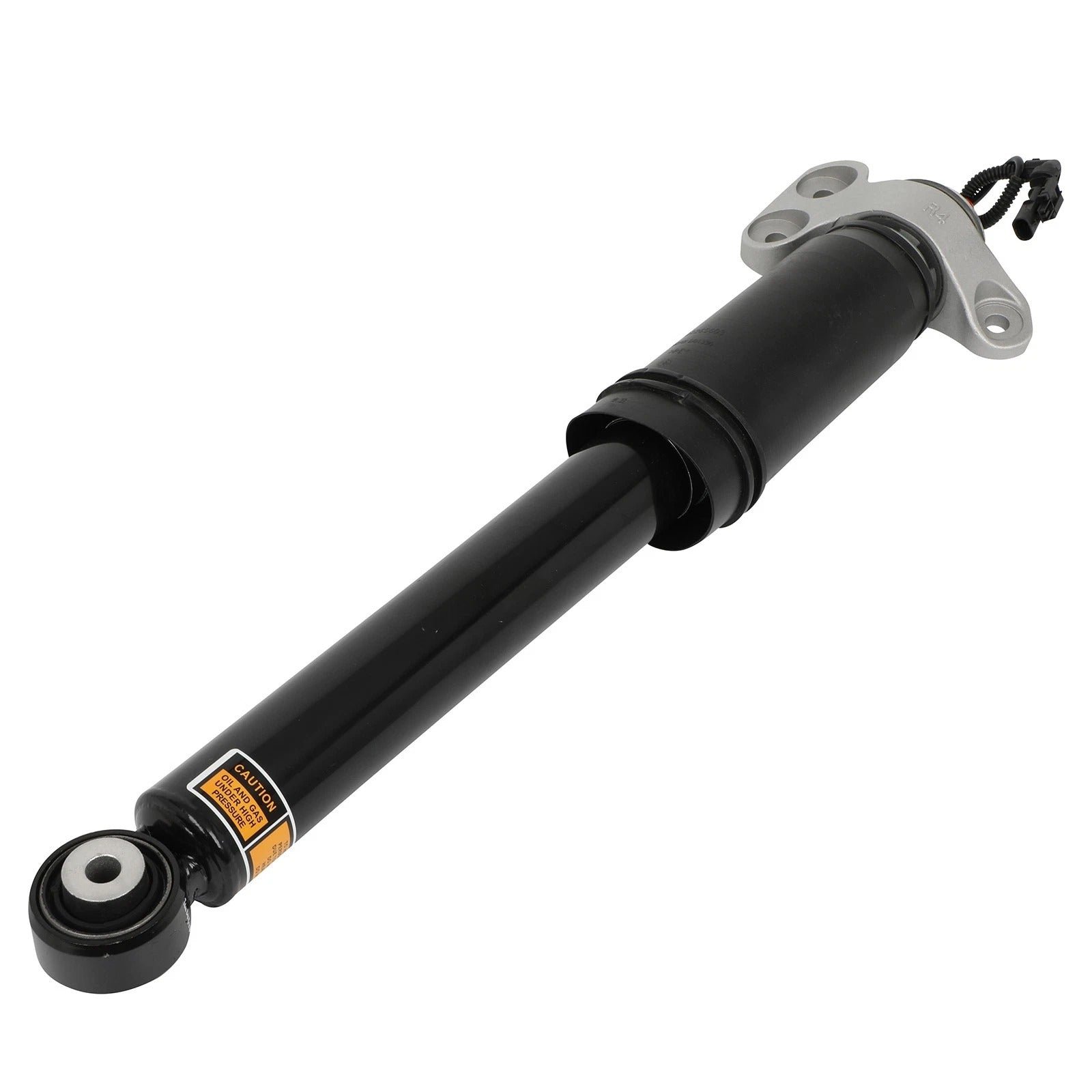

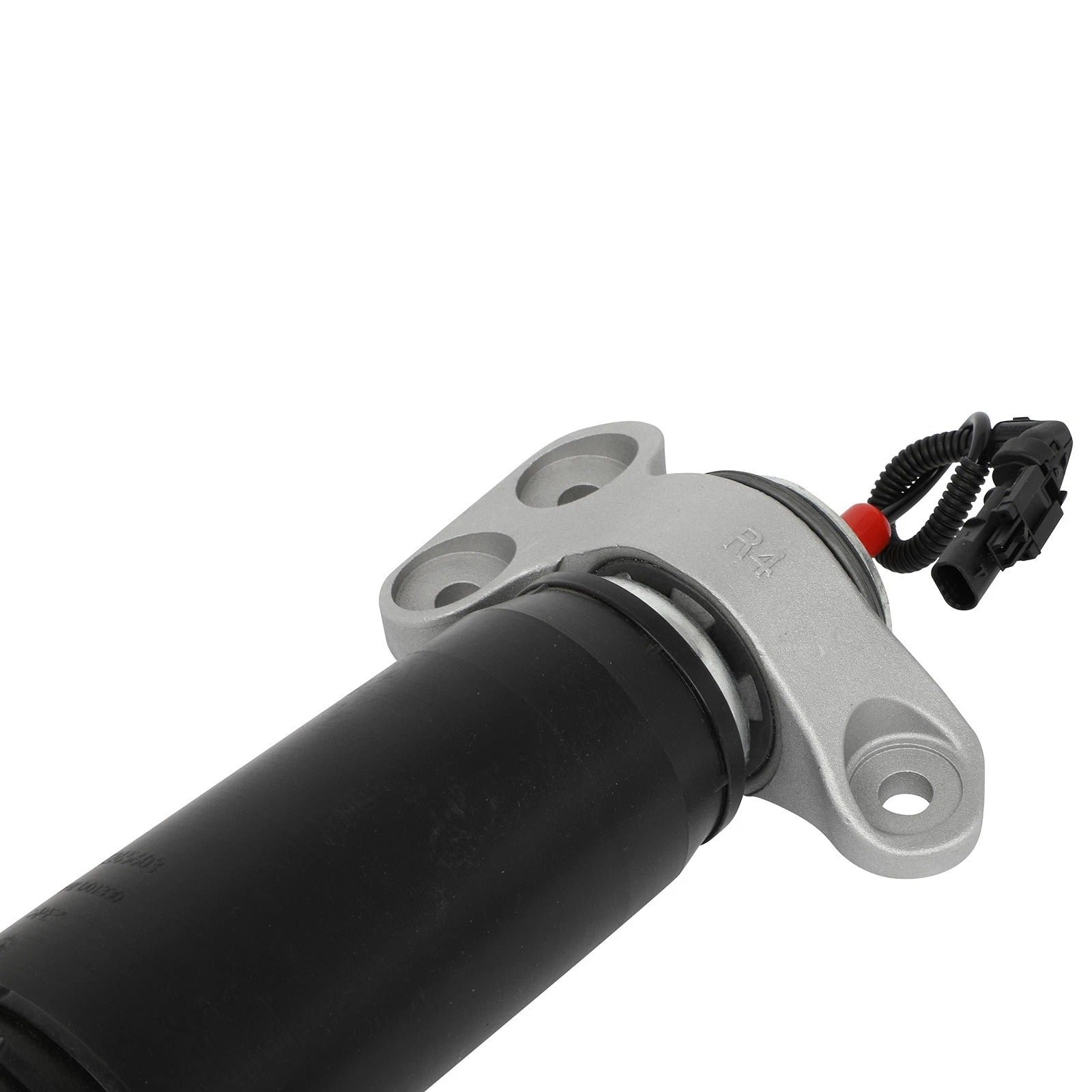

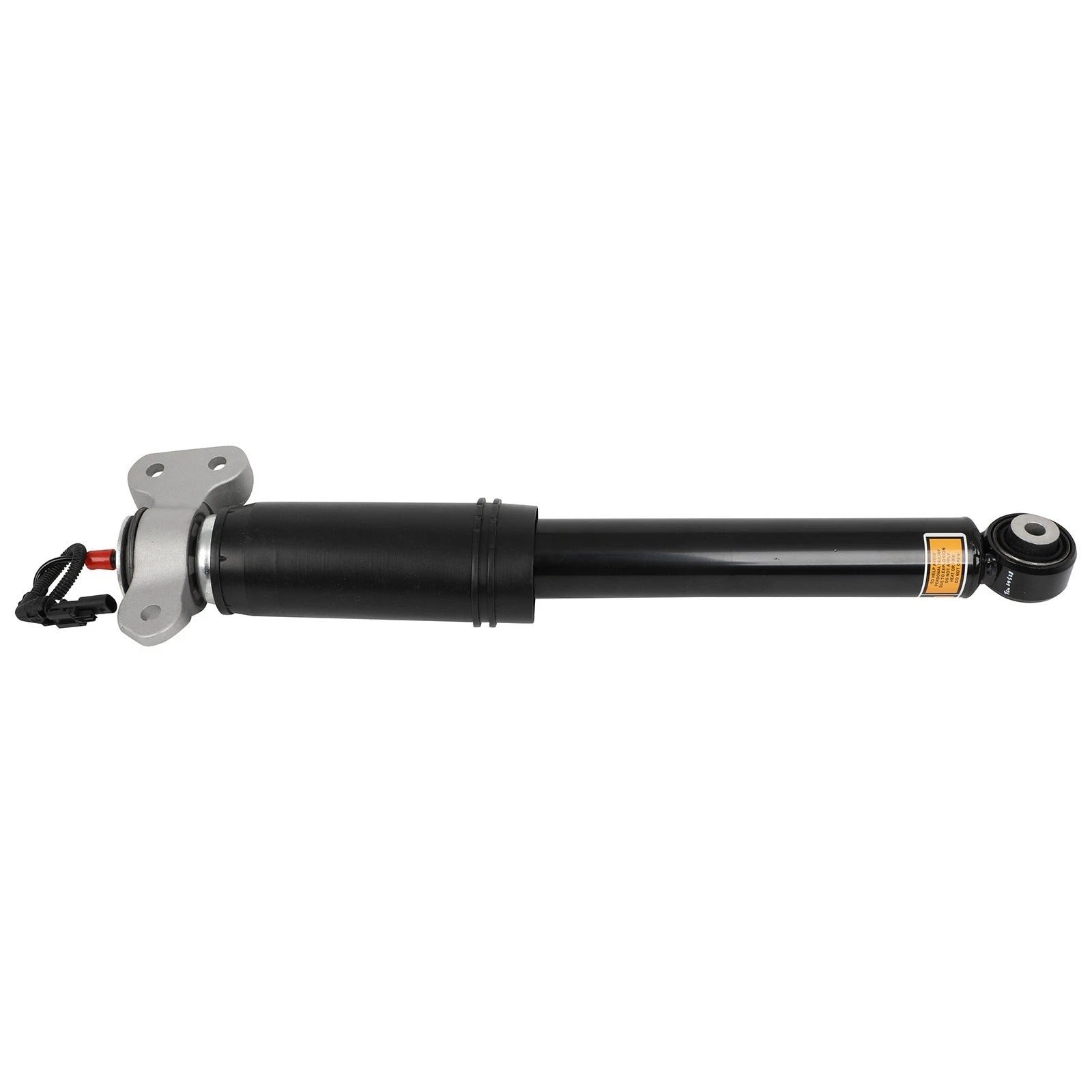

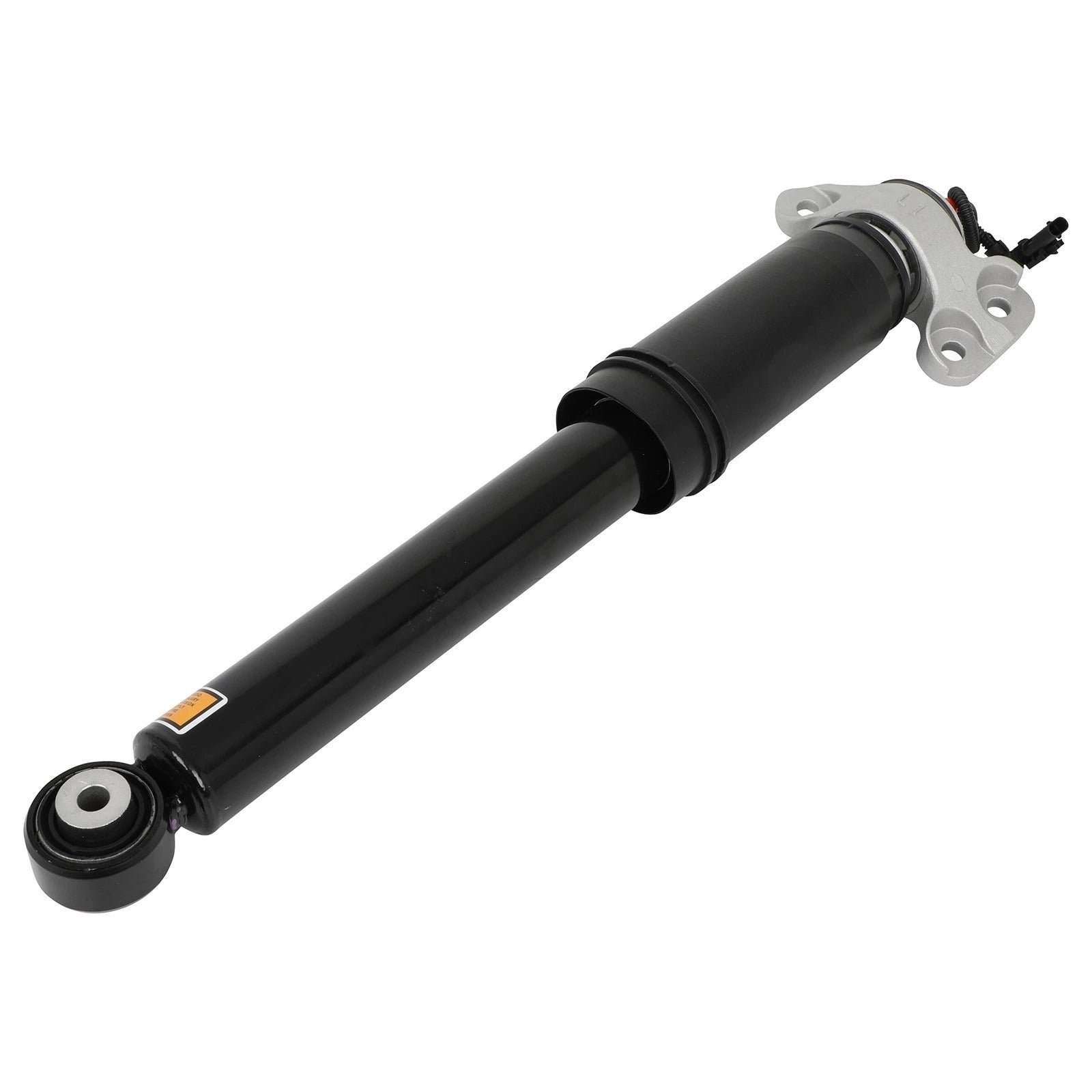

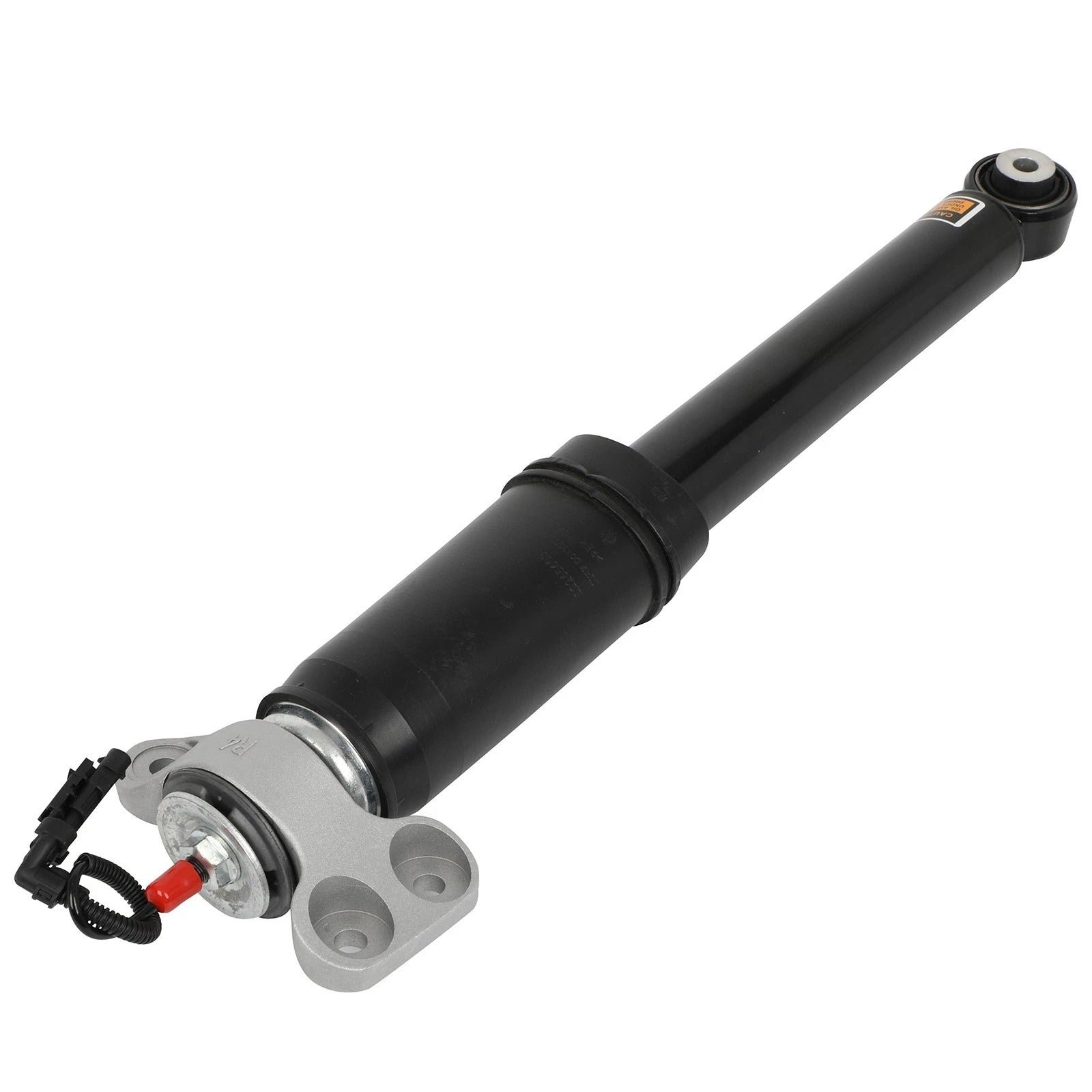

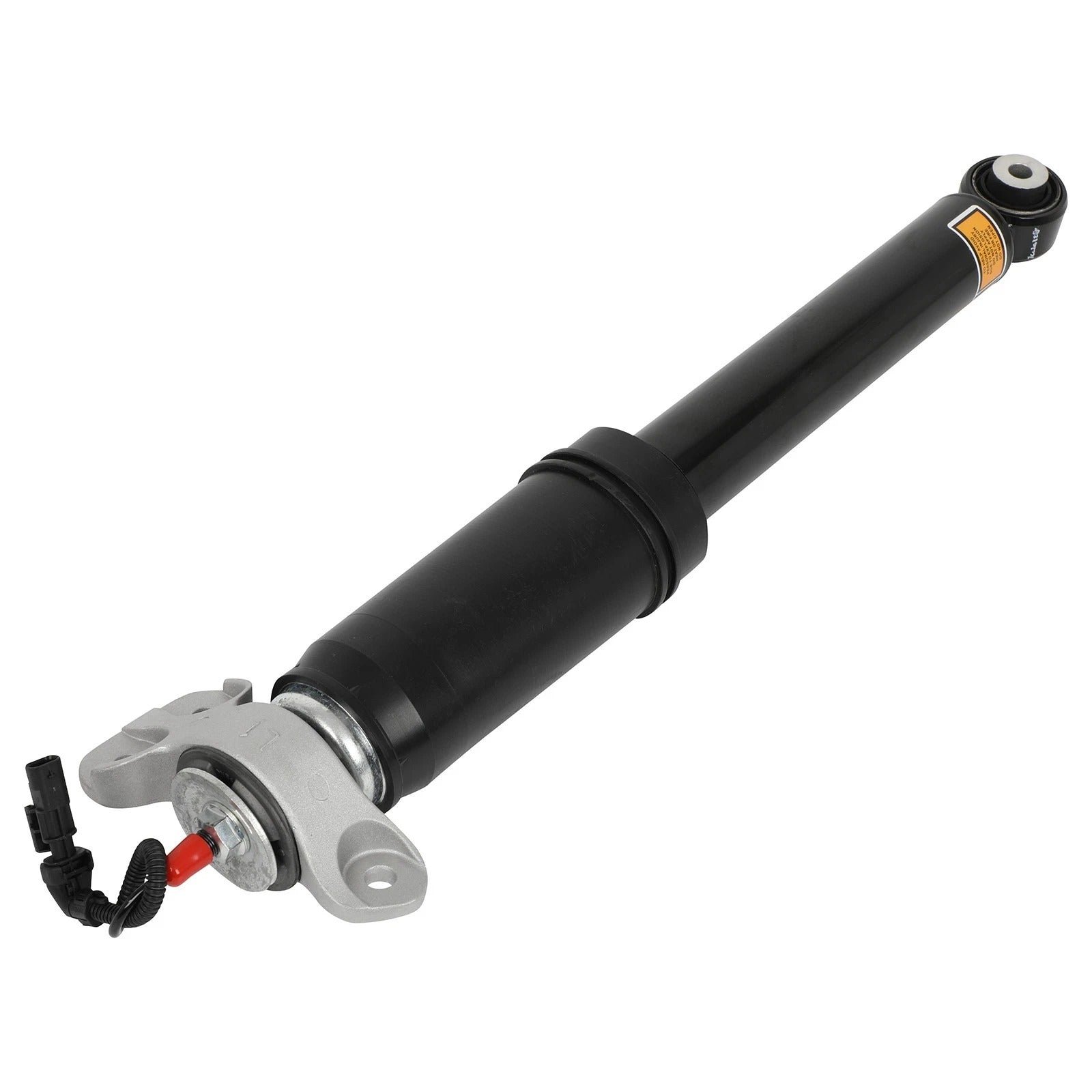

Rear Pair Shock Absorbers Struts Electric For Cadillac CTS ATS 2.0L 3.6L 2013-20

Features:

1. 100% Air Tightiness testing
2. 24 hours air tightness test ≤0.02MPa
3. Anti-corrosion and provide a more consistent wear surface
4. Built to strict quality control standards
5. CNC Machined Components
6. Designed for Comfort Suspension
7. Direct replacement for OEM strut without modification
8. Easy to install
9. Eliminating abnormal sound
10. Gives the driver more control of ride
11. Good heat dissipation
12. It has a high compressive strength and good sound insulation to ensure our driving comfort and safety
13. Restore the original ride height and improve ride quality
14. Test more than 3 million times
15. Sturdy & Durable Material

Application:

for Cadillac ATS 2013-2020
for Cadillac CTS 2014-2020
Note: Suitable model is just for reference. please confirm your OEM number or contact us for result

OEM Part Number:

84230454. 22931832. 22988736.
23146372. 84230450.23146368.
84230448. 23146366. 84230452.
23146370
84230453. 22931831. 22988735
23146371. 84230447.23146365
84230449. 23146367. 8423045
23146369

Generation & Evolution:

Cadillac CTS
GM Sigma platform/GMX320 First generation (2003-2007)
GM Sigma II Second generation (2007-2014)
GM Alpha Third generation (2014-2019)
Cadillac ATS
GM Alpha First generation (2012-2019)

Platform Drive Layout:

Front-engine. rear-wheel drive
Front-engine. four-wheel drive

Signs that your air suspension needs to be replaced include:

1.Abnormal Sounds
2.Poor Handling Stability
3.Air Leakage
4.Car Body Slant
5.Irregular Tire Wear
6.Over Bend

Package Included:

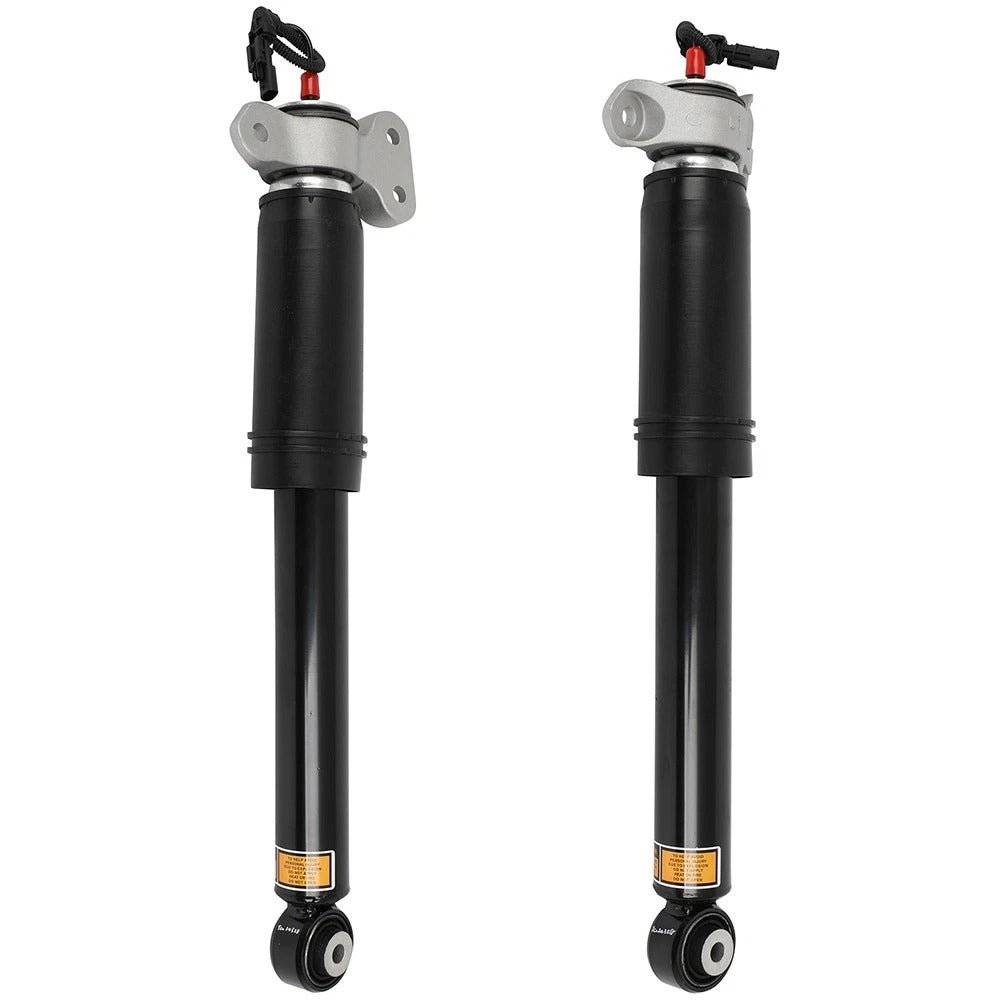

Pair for Rear Left and Right Air Suspension Shock Absorber Strut w/ Electric

Removal  Guideline:

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner’s manual on how to disconnect your battery.
Consult your vehicle owner’s manual. service manual. or car dealer for the correct jacking points on your vehicle and for additional care. safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported
1.Set steering to straight ahead.
2.Lift vehicle and remove rear wheel.
3.Locate and remove the air line to deflate the air shock. Turn the metal clip approx. 90°to remove the air line fitting from the air shock.

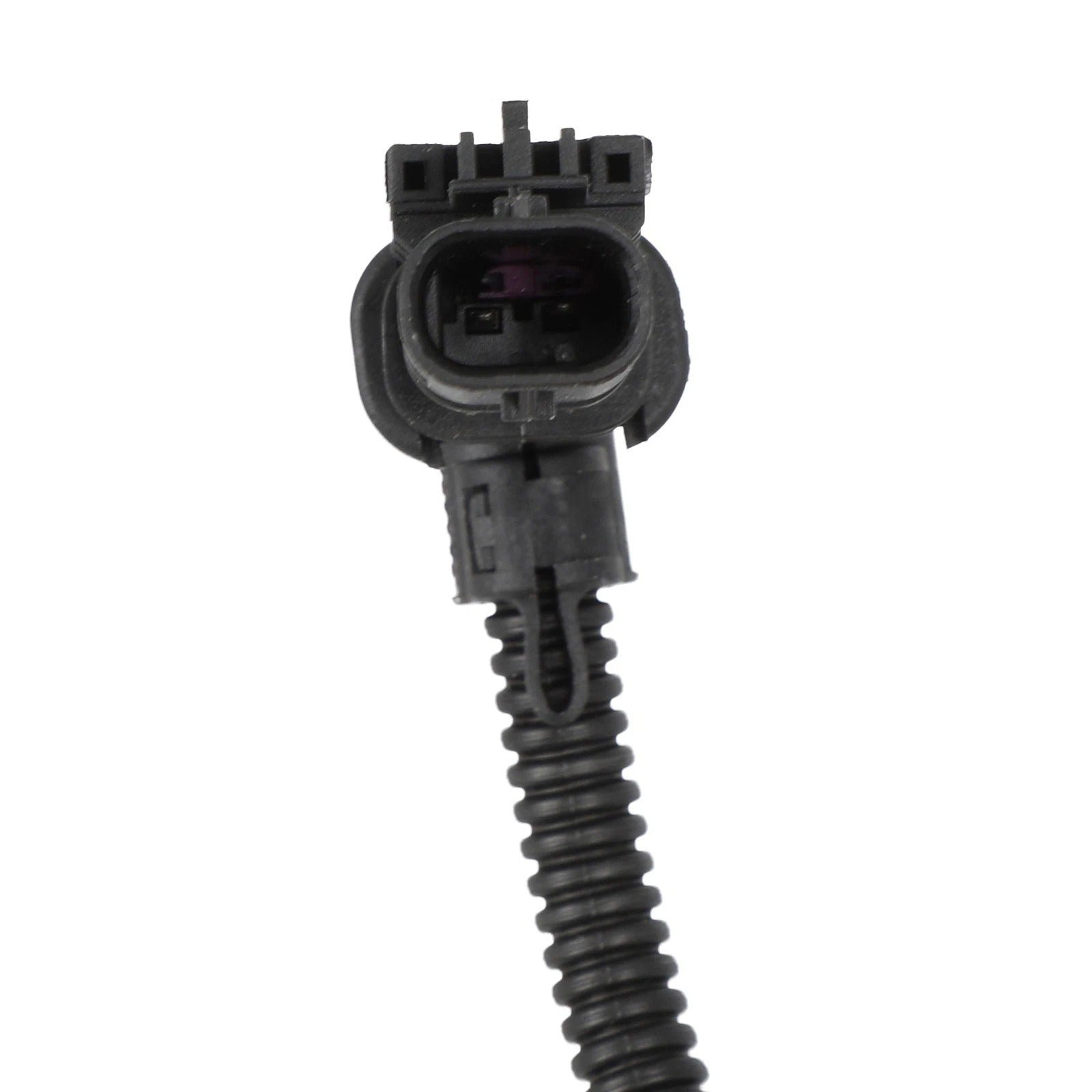

4.Locate and remove the electrical connector from the top of the air shock.
5.Loosen and remove the upper and lower shock mounting nuts.
6.Support the axle to relieve pressure from the air shock’s mounting points. Remove the upper and lower air shock mounting bolts.
7.Remove the air shock from the vehicle.
8.Removal complete.

Installation Guideline:

Installation is in reverse order of air struts removal.
