Fuel Injection Line Install Kit For LS Conversion EFI FI w/Filter and Regulator

Description

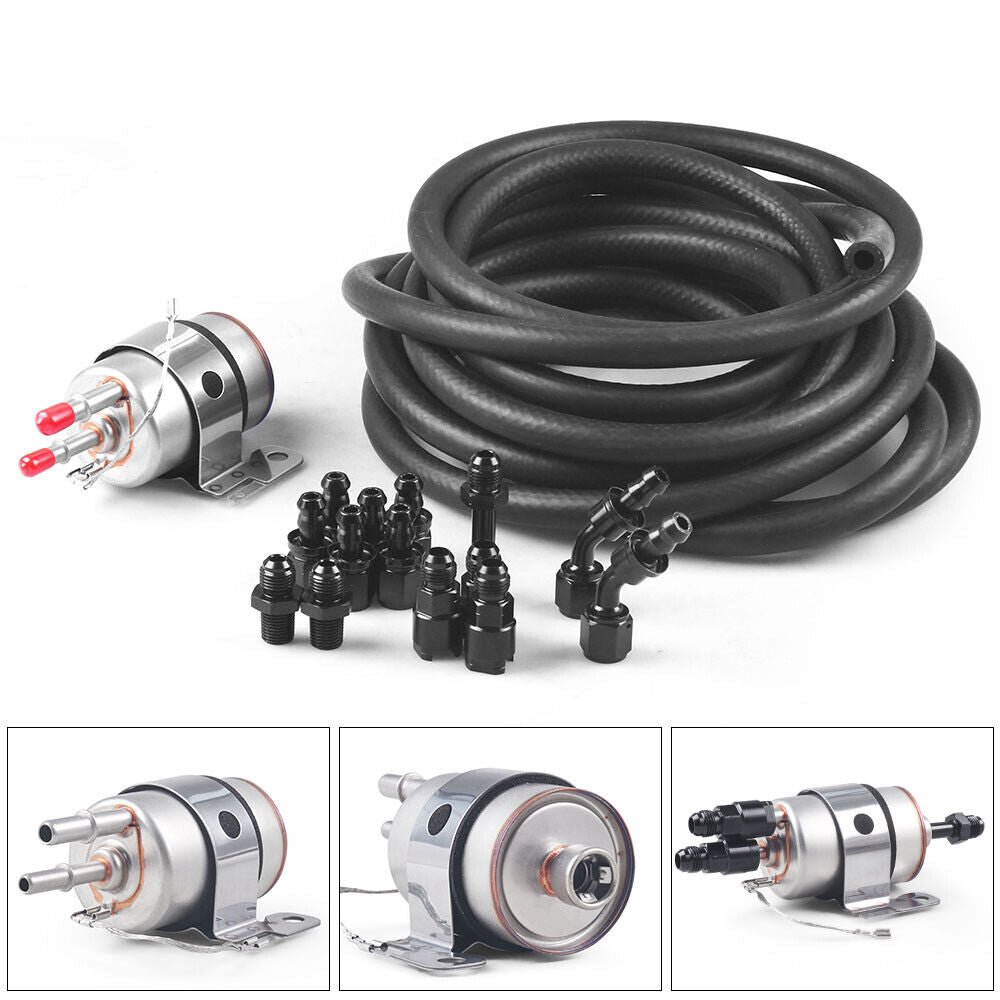

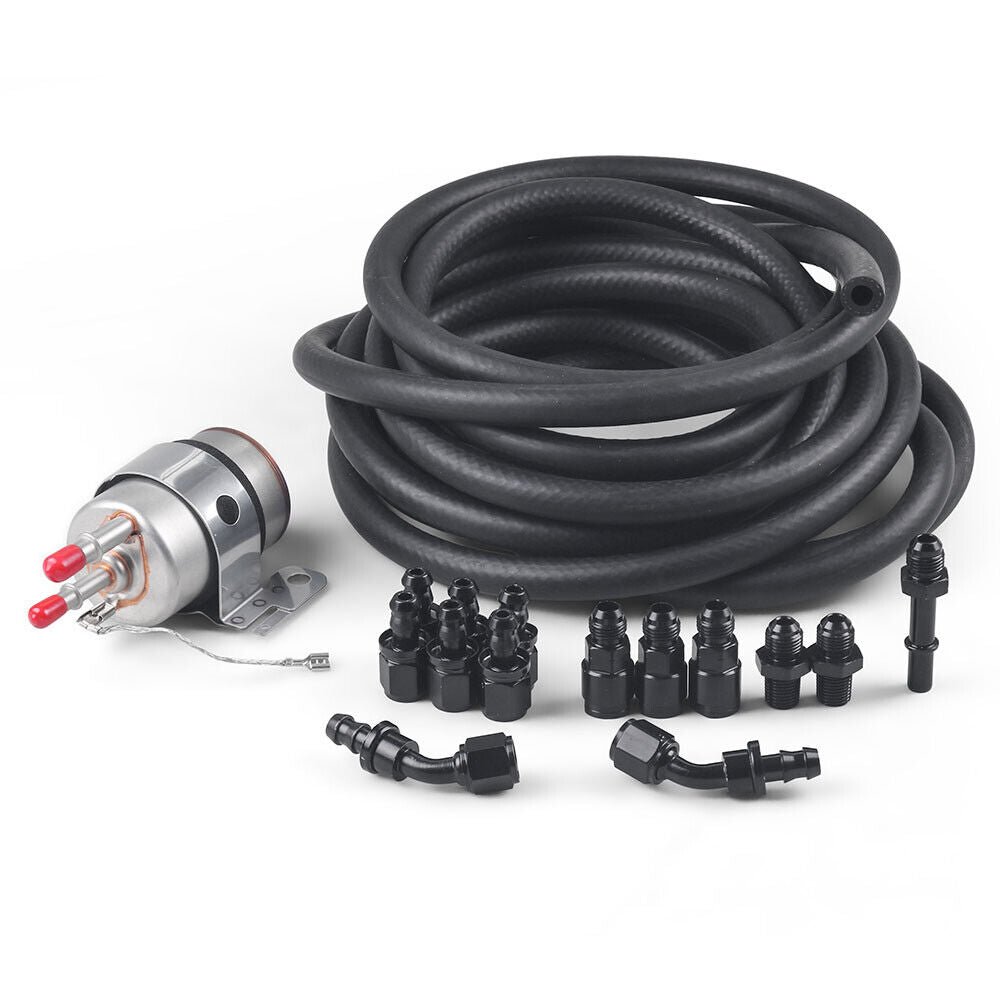

This complete LS conversion fuel line kit comes with 25-feet of properly rated fuel injection hose and all the correct fittings to plumb your fuel lines from the fuel pump forward. All the fittings feature a reusable spin-lock connector that does not require special tools to disassemble.Professional Installation Is Highly Recommended. No Instruction Included.

Features
Type: Fuel Injector Installation Kit
Fitment Type: Direct Replacement
Size: 6 AN
Color: Black
CNC Machined
Fitting Material: Aluminum
Fitting Surface Finish: Anodized
Application: Fuel Injection System

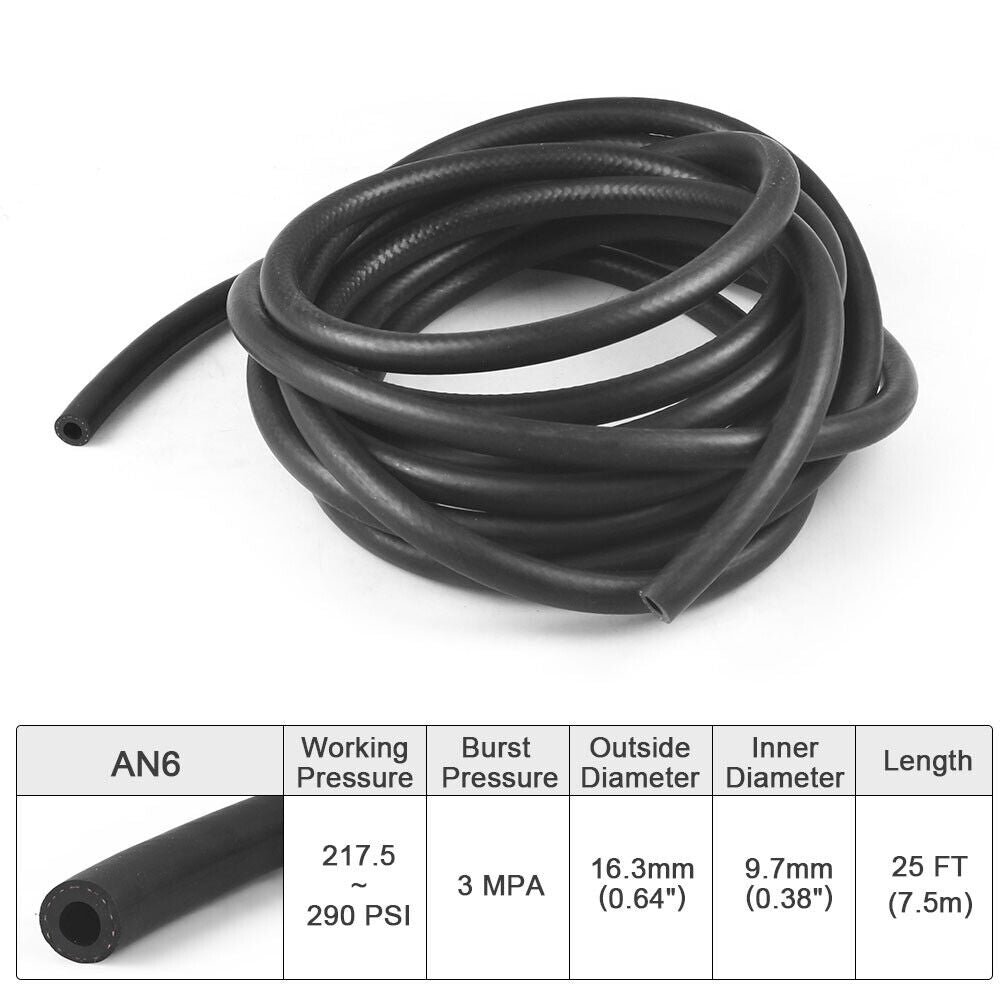

NBP Rubber Fuel Hose Features:
Fuel Hose Material: Nitrile or BunaN Rubber（NBR）
Fuel Hose Outside Diameter: 6.30inch/16mm
Fuel Hose Inner Diameter: 3.74inch/9.5mm
Fuel Hose Length: 25feet/7.5m
Fuel Hose Working Pressure:217.5-290PSI
Application: fit for Petrol and Diesel

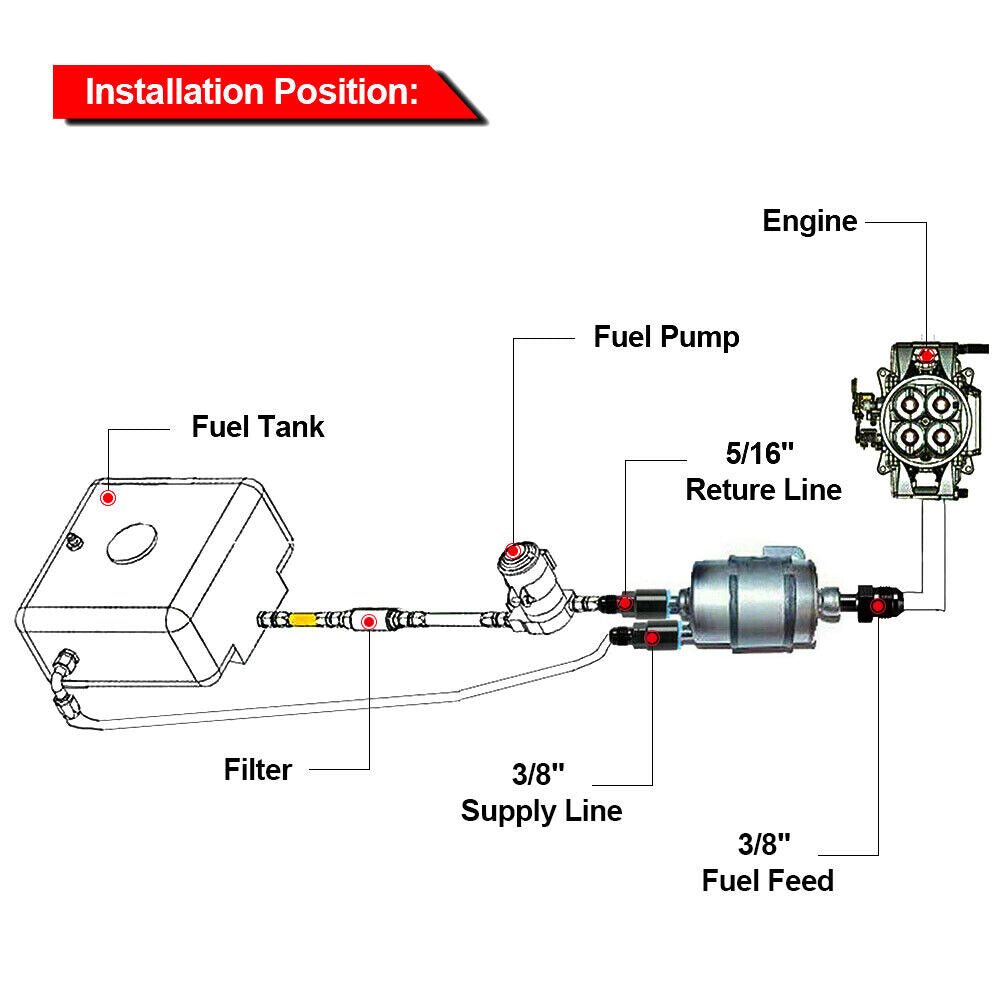

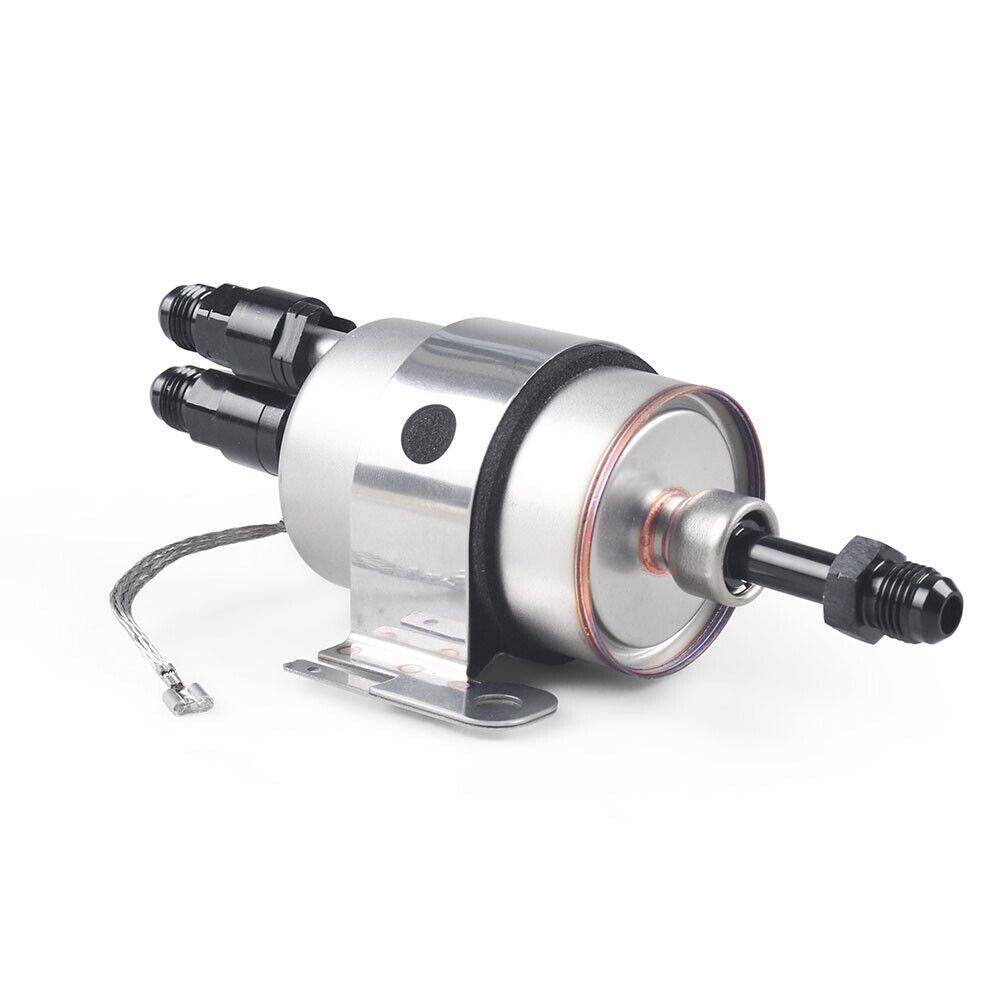

LS fuel filter/regulator:
This fuel filter features an internal bypass that regulates fuel output pressure to 58psi (4 Bar).
The filter features a 3/8 male inlet. 5/16 male return outlet. and a 3/8 female supply outlet.
This fitting combination makes for simple plumbing of fuel systems for LS Swaps and aftermarket EFI conversions.
255LpH maximum fuel pump flow rate

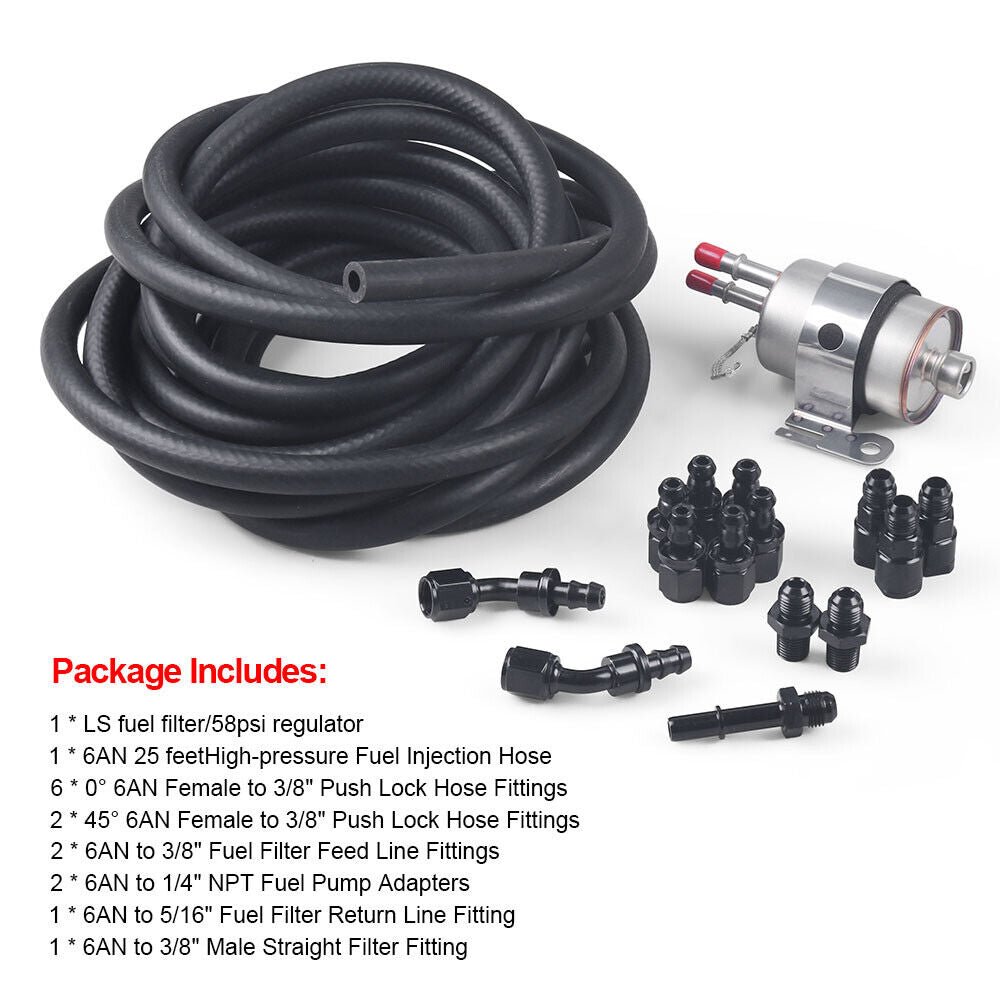

Package Including
1 x LS fuel filter/58psi regulator
1 x 6AN 25 feet of high-pressure fuel injection hose

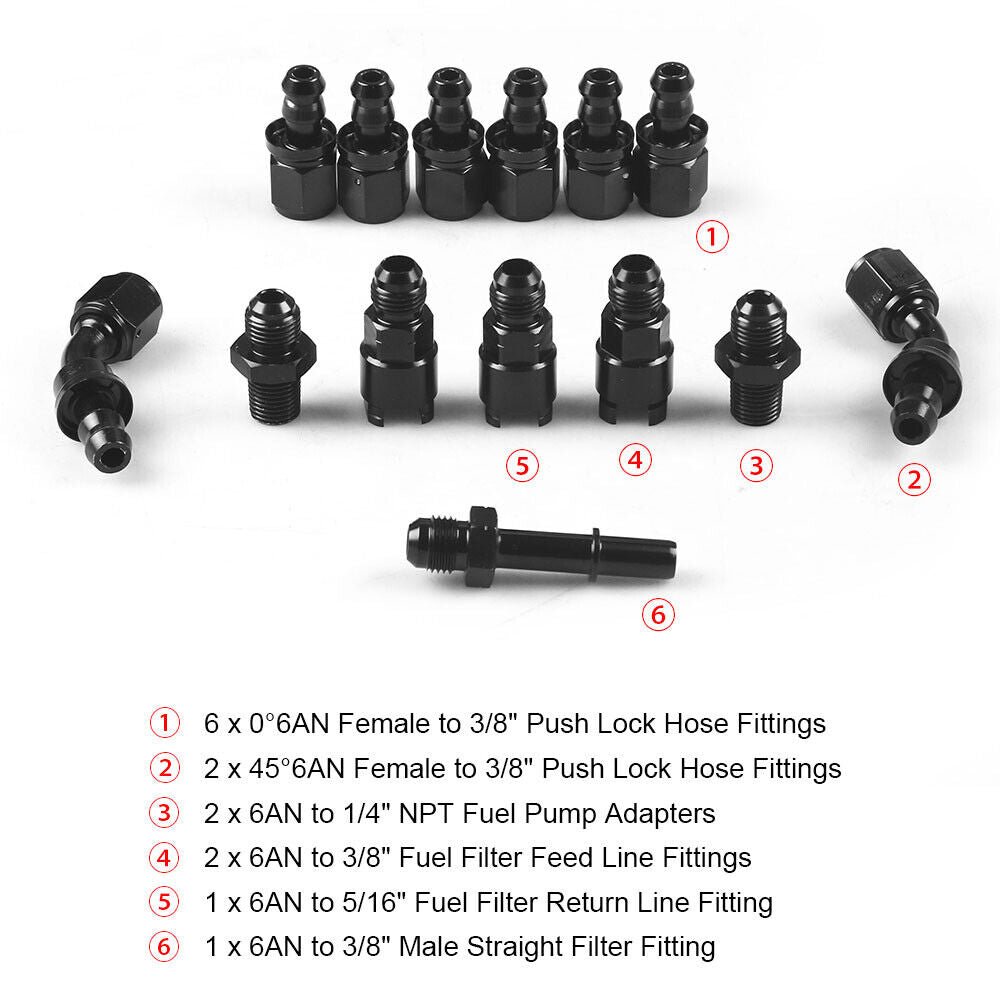

1 x 6AN to 3/8″ Male Straight Filter Fittings
1 x 6AN to 5/16″ Fuel Filter Return Line Fitting
2 x 6AN to 3/8″ Fuel Filter Feed Line Fittings
2 x -6AN to 1/4″ NPT Fuel Pump Adapters
2 x 45 Degree -6AN Female to 3/8″ Push Lock hose fittings
6 x straight -6AN Female to 3/8″ Push Lock hose fittings
