Crank Case Splitter Separator and Crank Puller Installer Tool Dirt Bike ATV

Description:

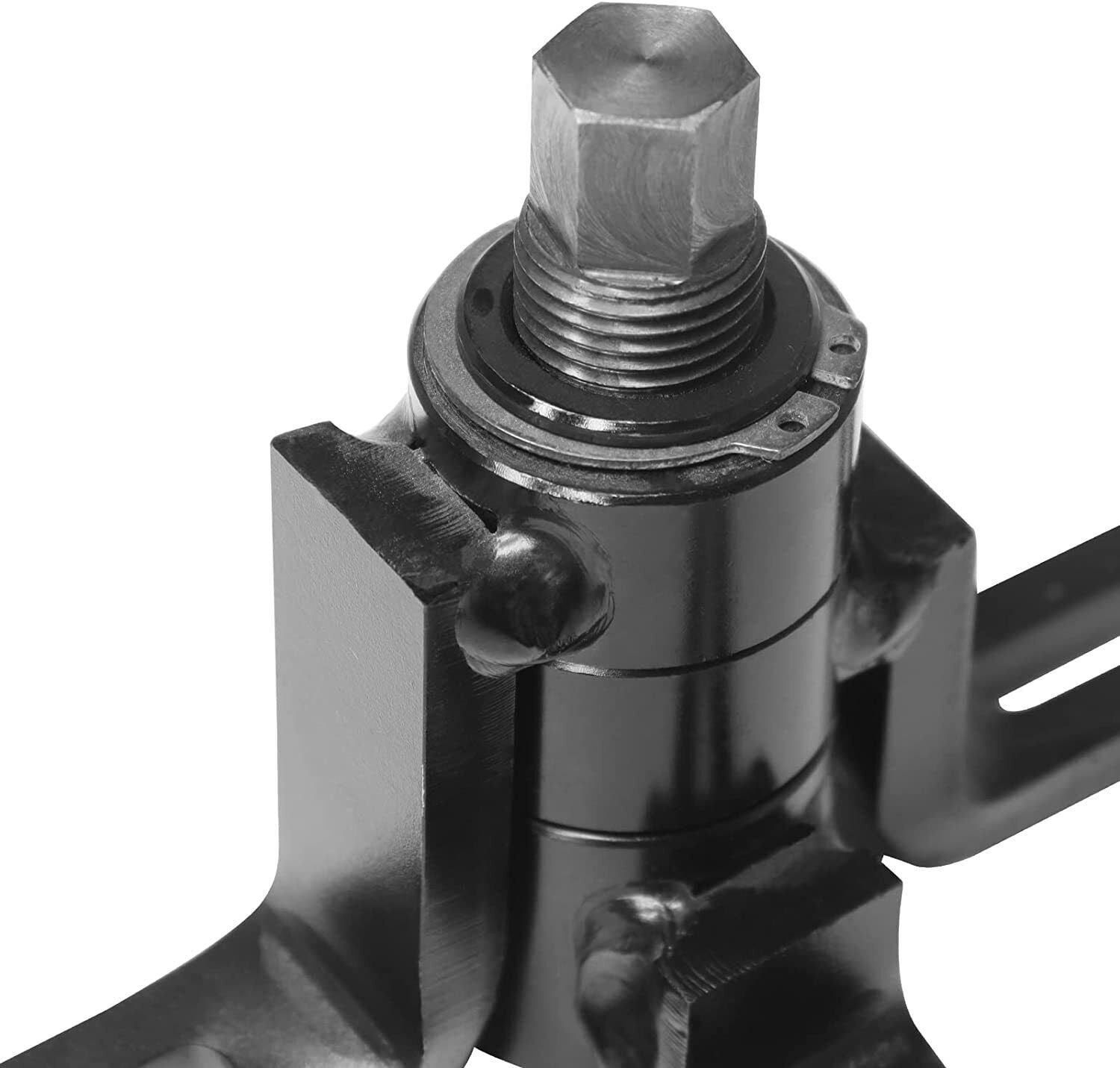

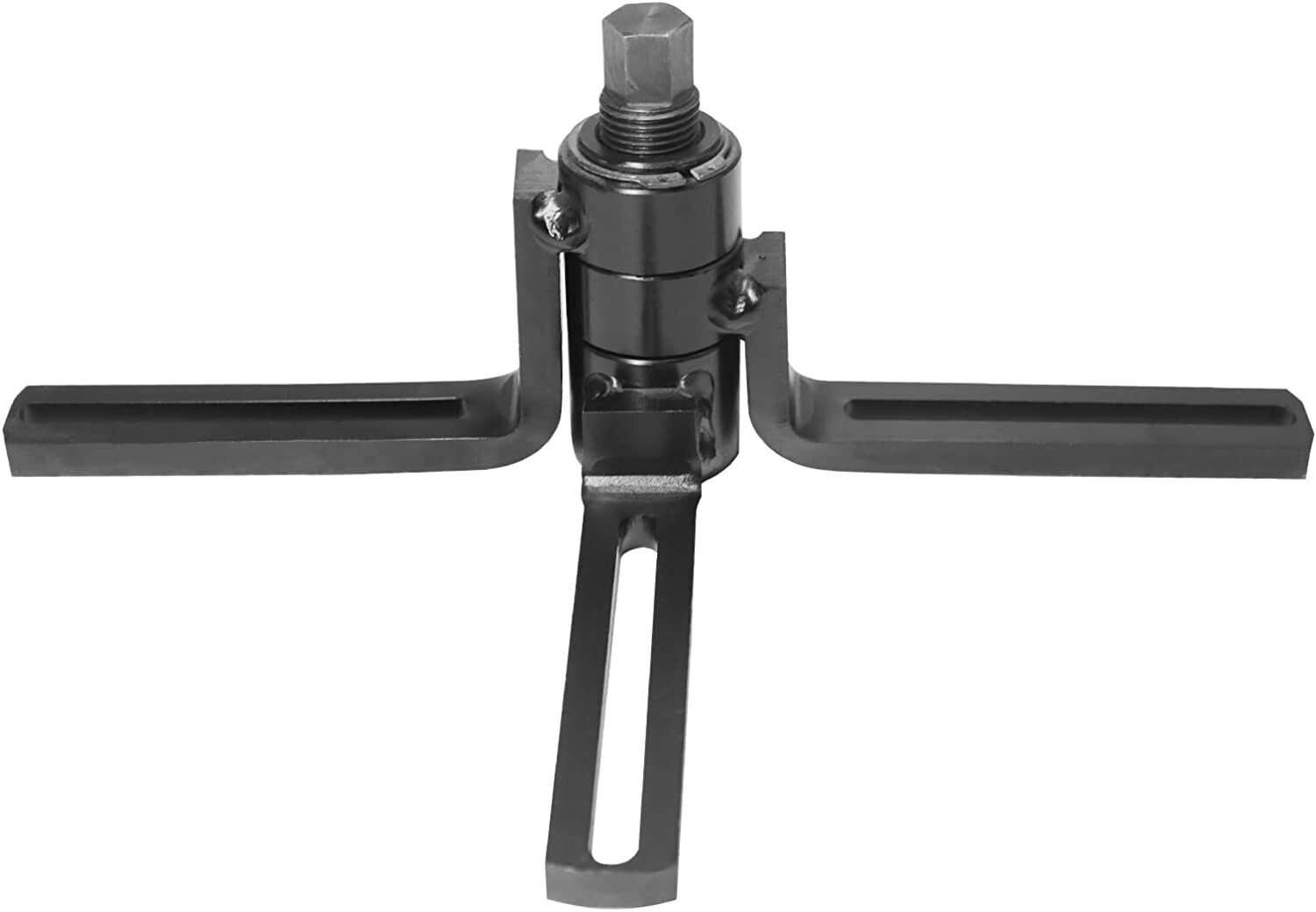

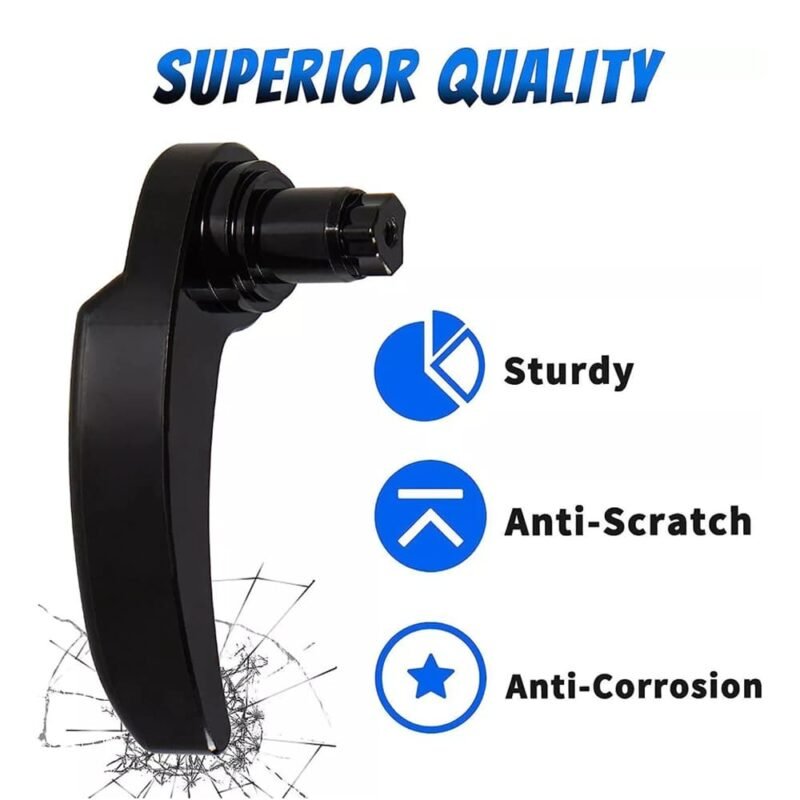

Crank Puller & Installer Tool .Heavy-duty steel construction.

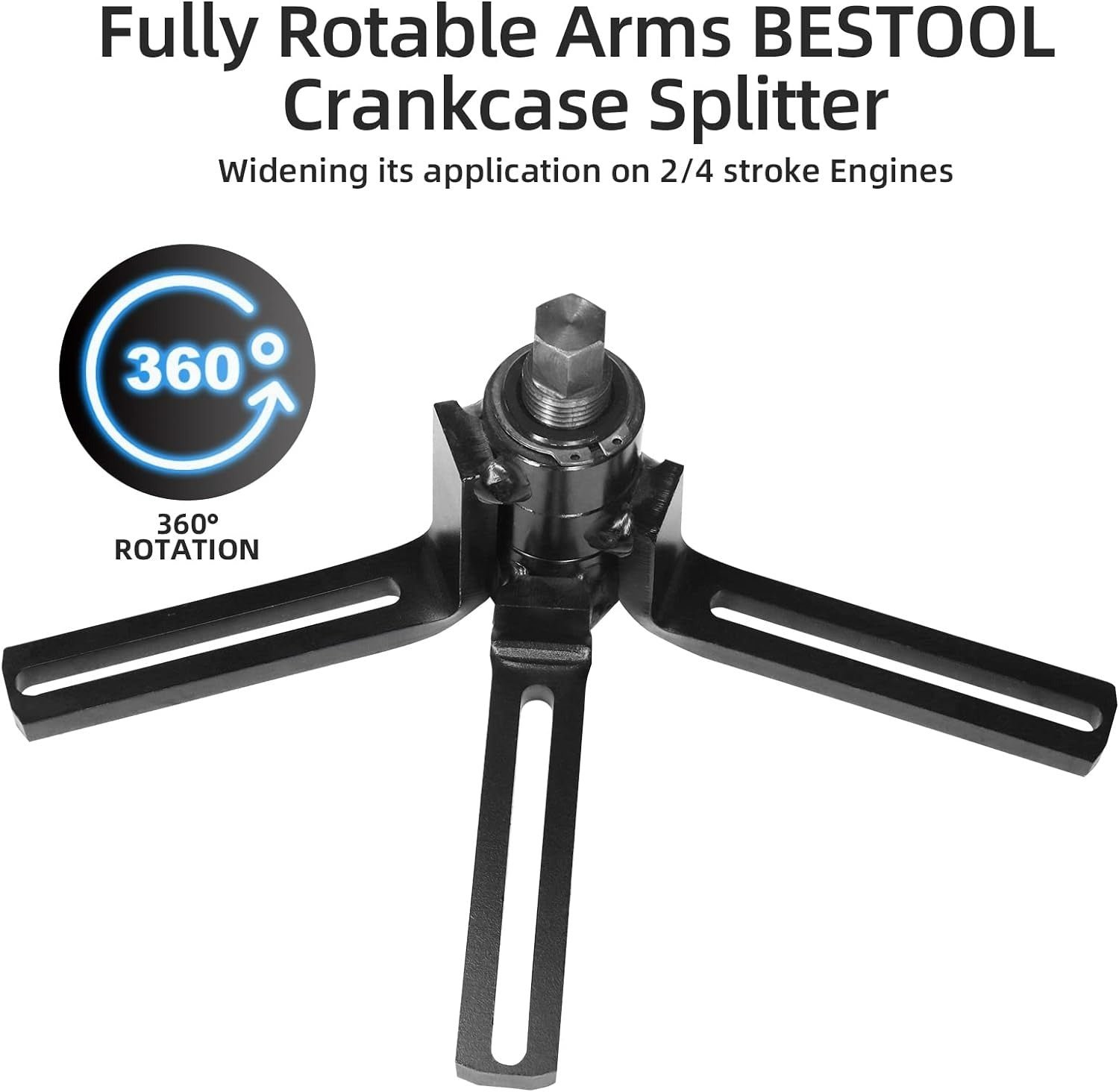

Crankcase splitter makes disassembling the crankcase simple by allowing you to safely push the crank assembly right out of the case halves.
Crankcase splitter & Installer tools makes installing motorcycle and ATV crankshafts much easier and more precise.
Safely and easily pulls crank assembly into crank puller motorcycle. Includes both male and female M10 x 1.25mm and M12 x 1.25mm adapters to attach to crank assembly.
Will not work on: YMH Raptor 660. Kawasaki Tecate 250. KTM 125/144/150.

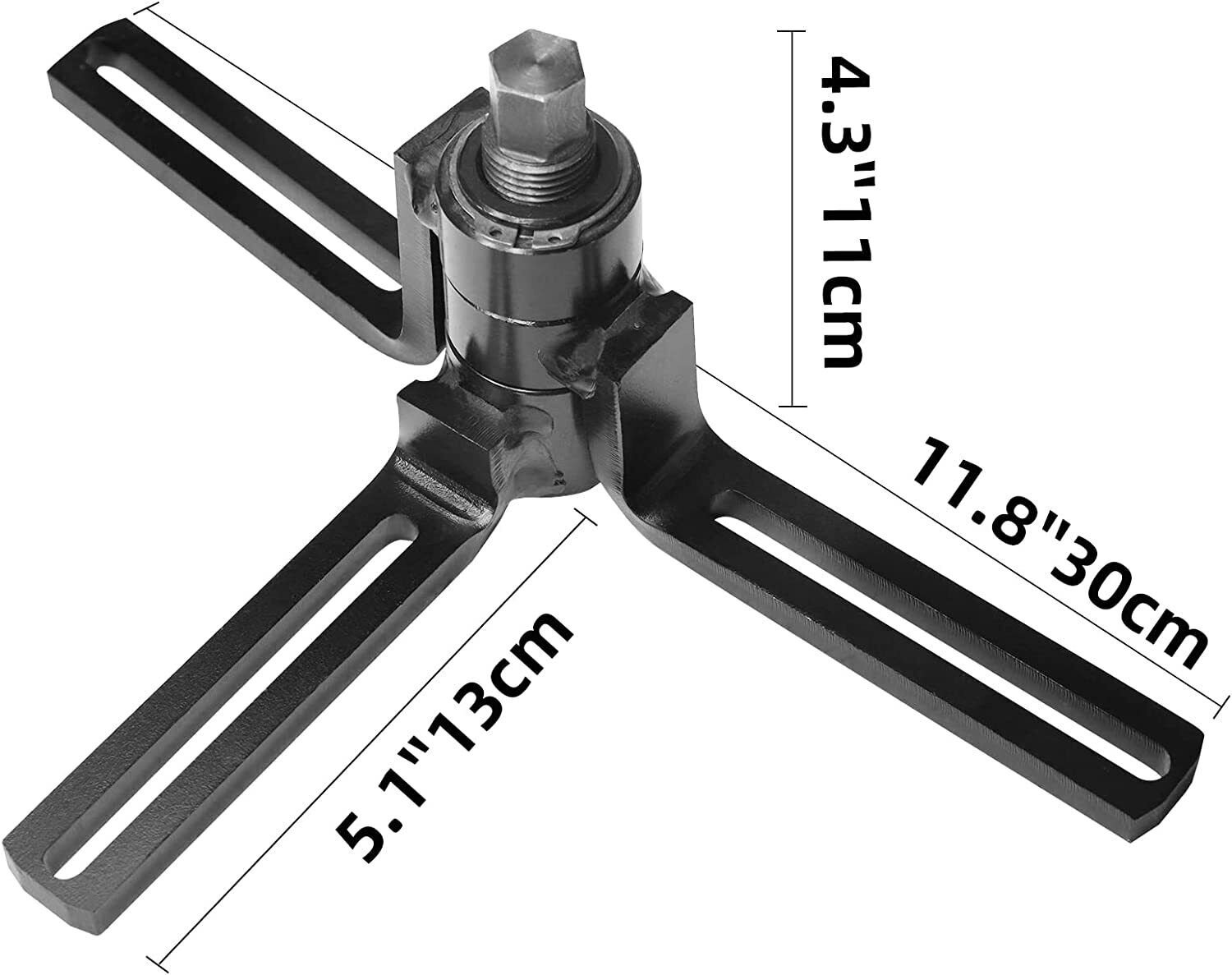

Specifications:

Condition: 100% Brand New
Color: As pictures shown
Type: Crankcase Splitter
Material: Steel

Package Content：

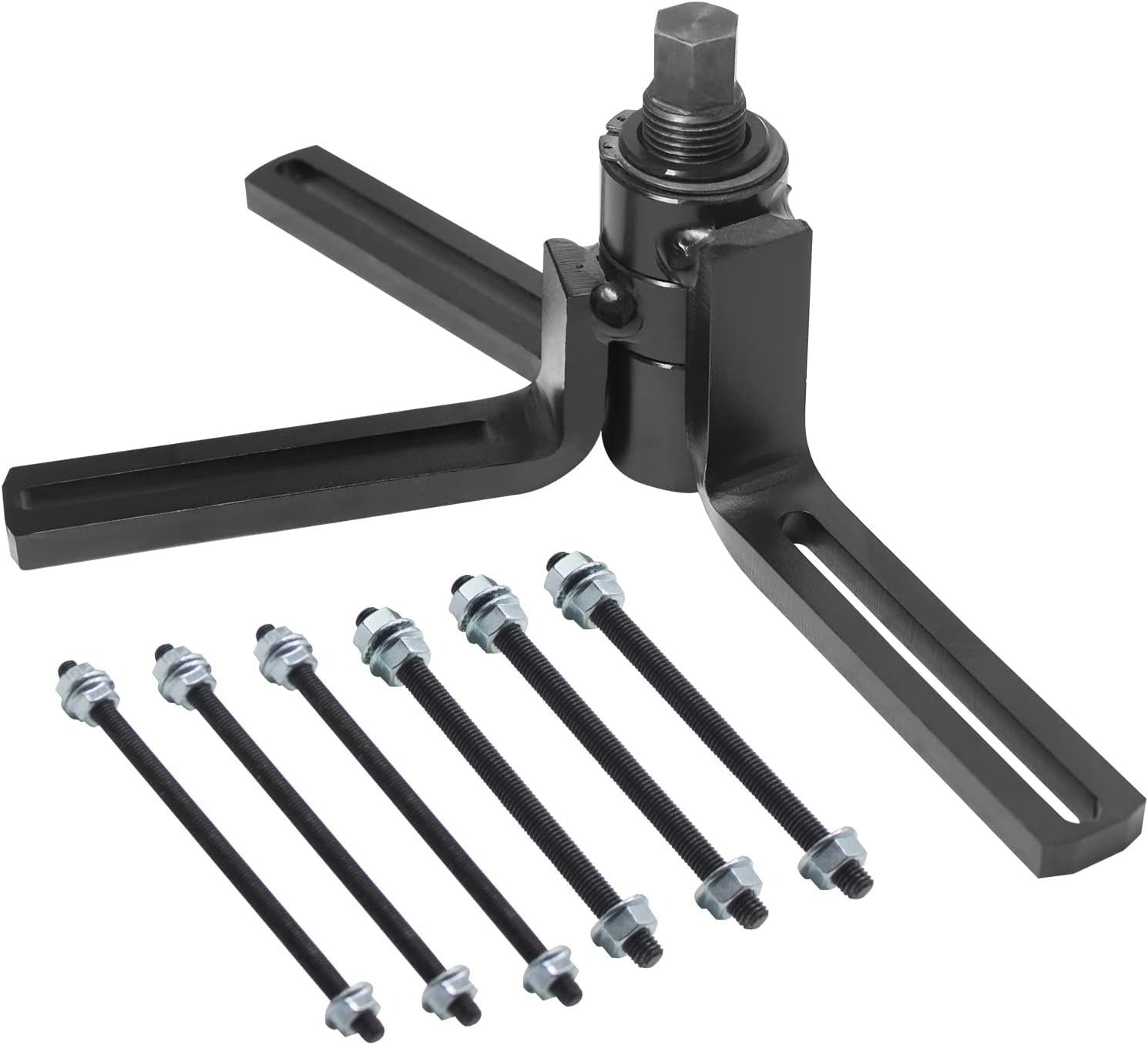

1 x Crankcase Splitter Separator Tool Set

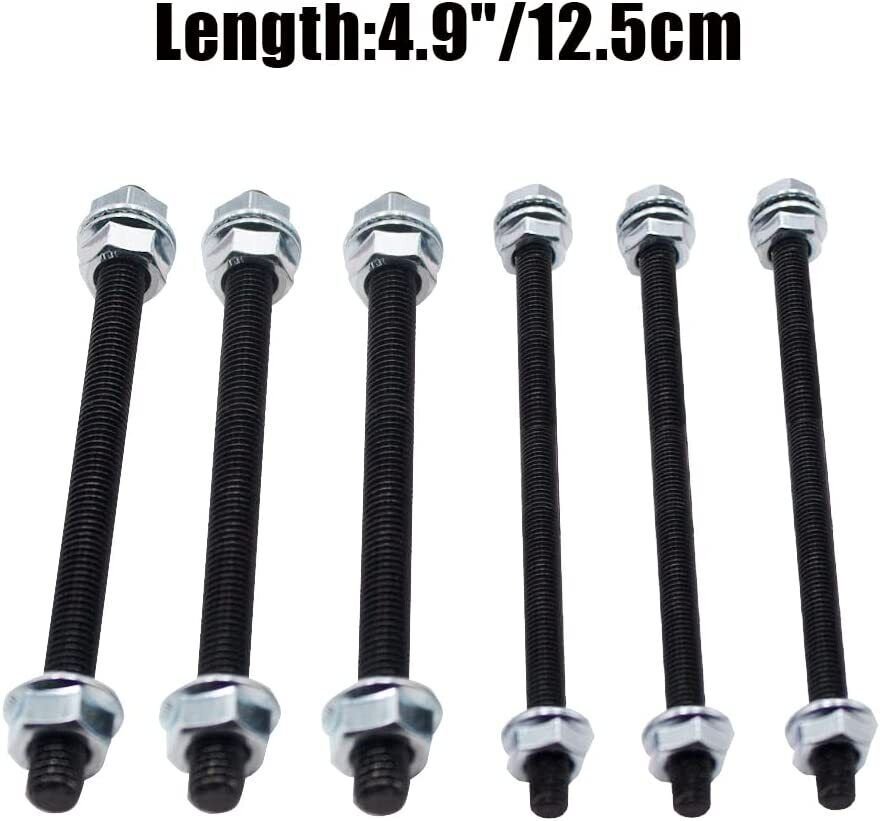

3 x 6mm mounting bolts
3 x 8mm mounting bolts

HOW TO OPERATE：

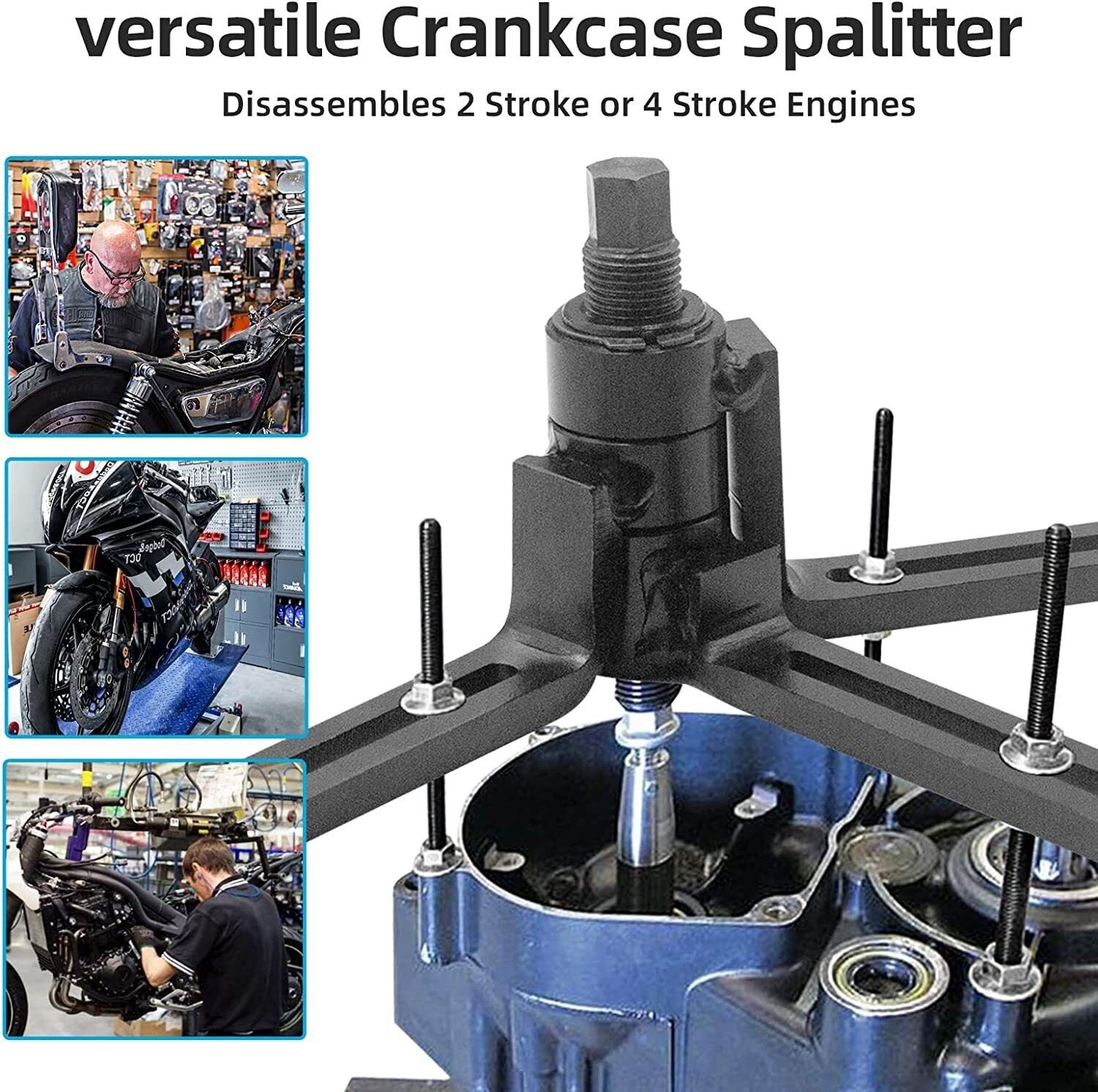

STEP 1: Place center of splitter/Separator over exposed crank end. Back out threaded shaft until the splitter sits over crank and arms are parallel and equal distance from case
STEP 2: Using supplied 6mm or 8mm bolts. attach splitter arms evenly spaced around the crank and attach arms to the crankcase. (If you only need two arms. please separate evenly.)
NB: It is important that the splitter is properly aligned with the crank and the arms are parallel with the case. Make sure all bolts are removed from the crankcases
STEP 3:Using a 17mm socket or wrench. carefully tighten threaded shaft until case clears crank.
STEP 4: Disassemble tool from crankcase.
