90150 King Pin Press for Medium, Heavy Duty & Semi Trucks – Compatible with Class 3-8 Transportation Trucks and Equipment

Features:

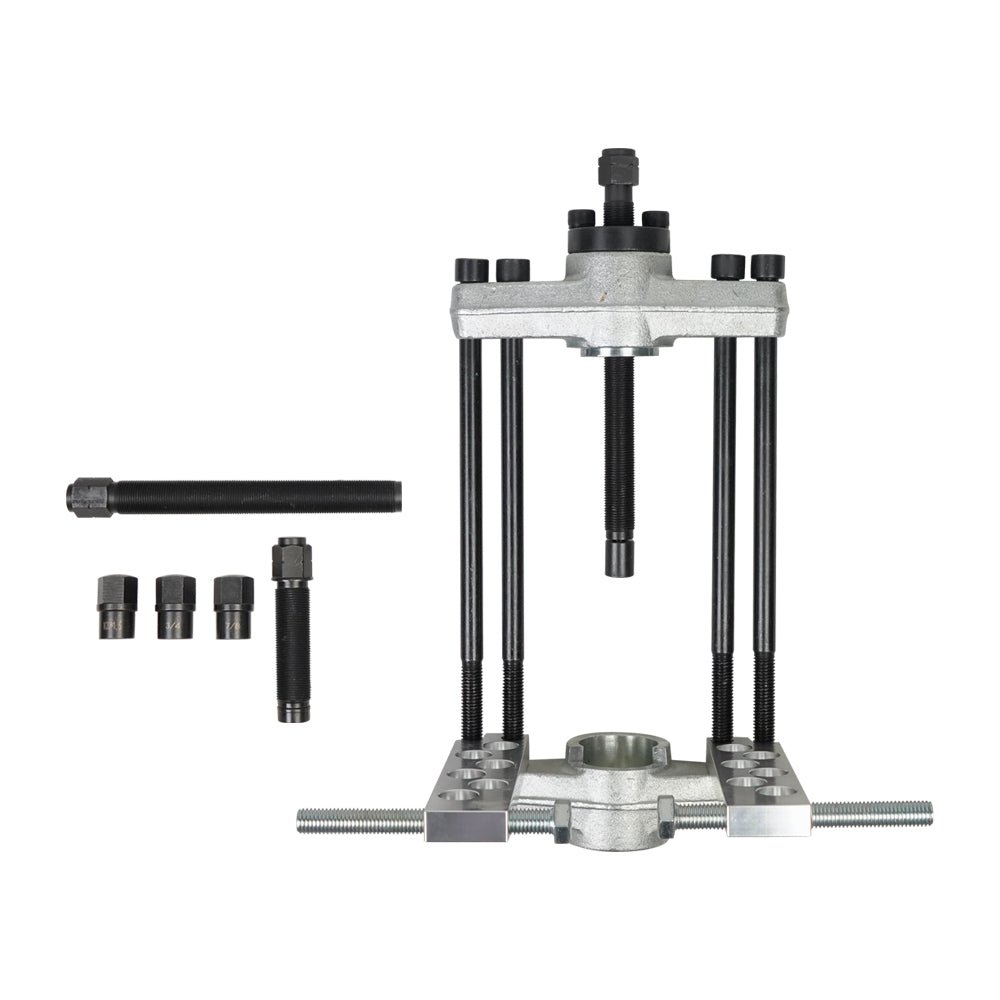

Efficient & Easy King Pin Removal: Tool King Pin Press (part number 90150) revolutionizes king pin maintenance by enabling the removal of king pins within minutes. requiring only a single operator. This tool brings unparalleled efficiency and ease to what was once a labor-intensive task. making it an essential tool for servicing medium and heavy-duty trucks.

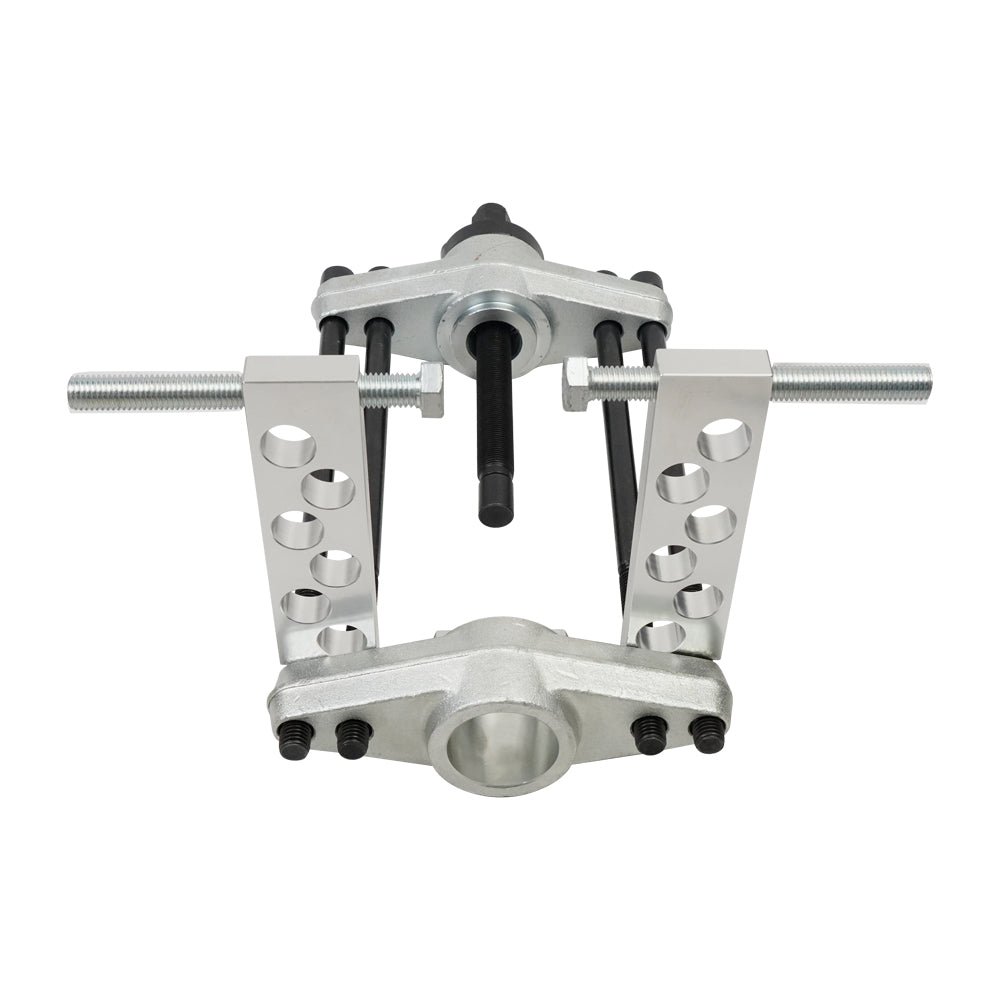

Powerful & Optimized Design: Despite its qualified 46.000 lbs of force capability. the King Pin Press maintains a lightweight design at just 30 lbs. Anti-torque arms prevent twisting under extreme force. and optimized diamond-shaped end plates made from high-grade steel reduce the tool’s mass without compromising strength. ensuring durability and ease of use.

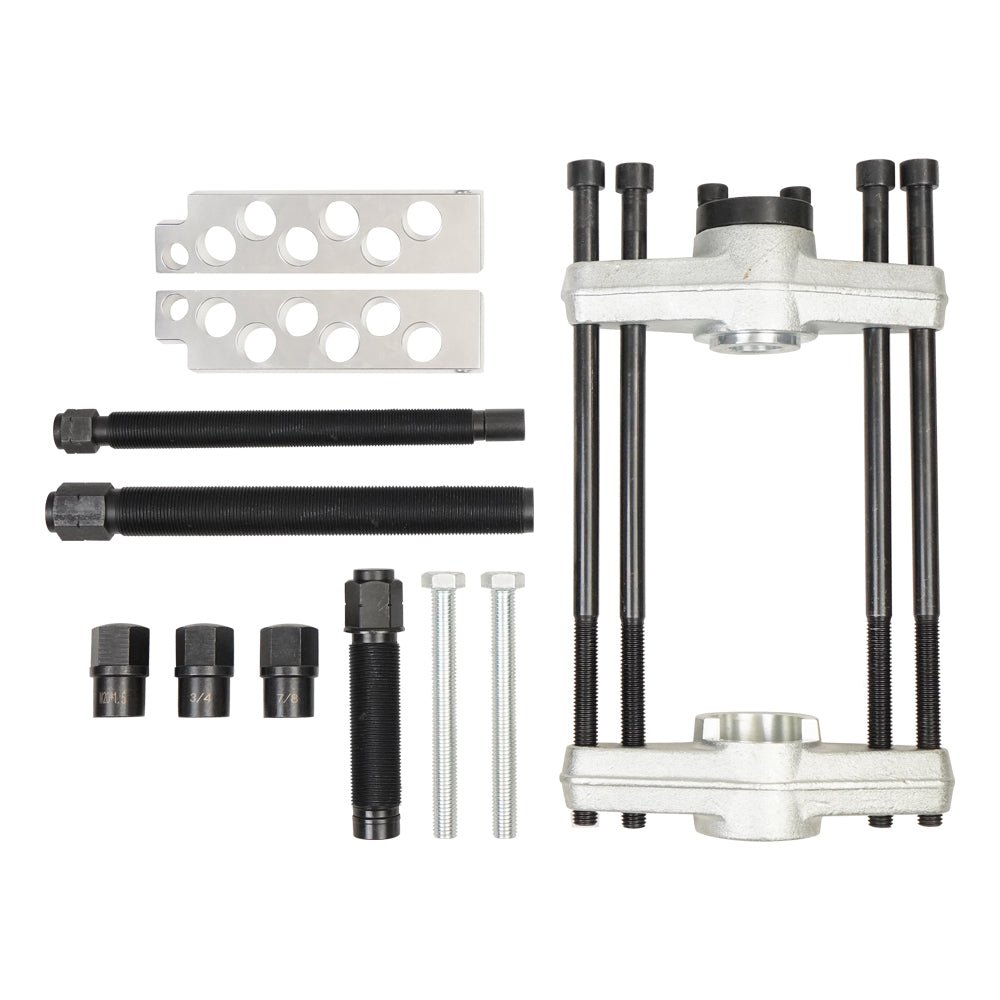

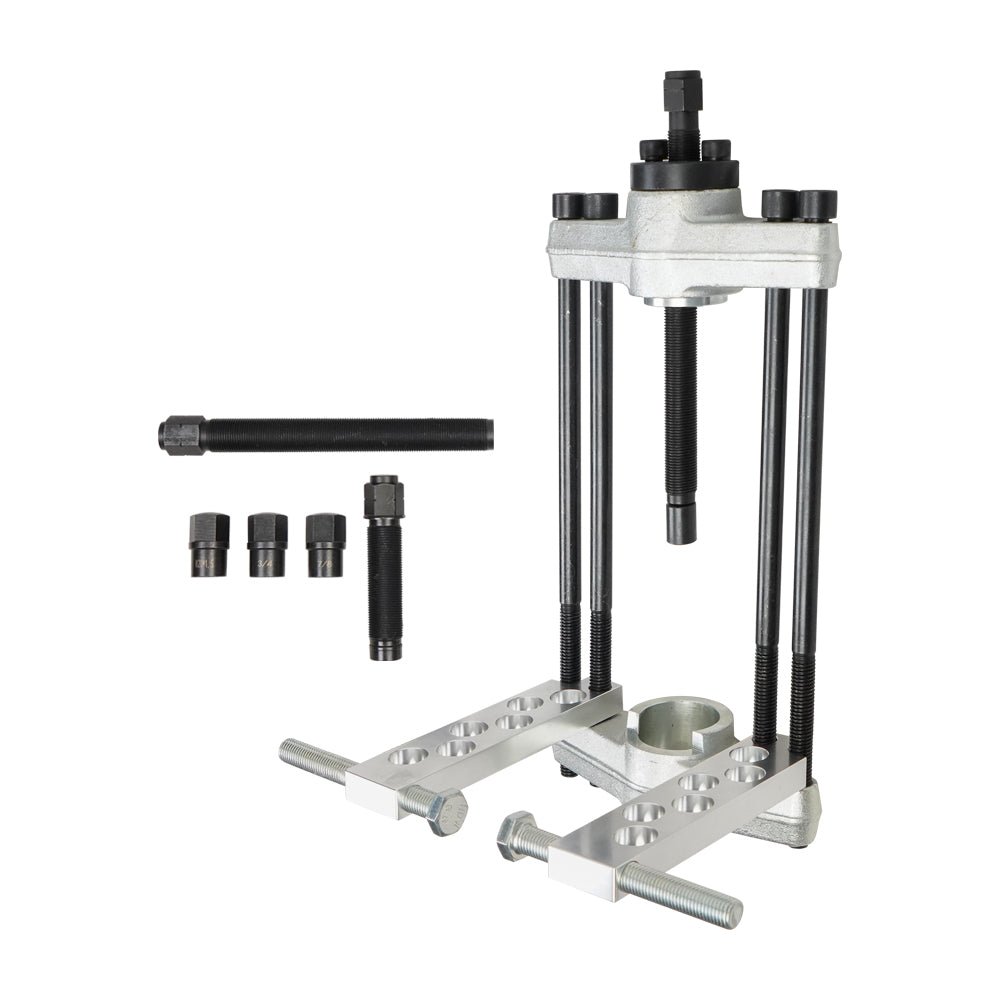

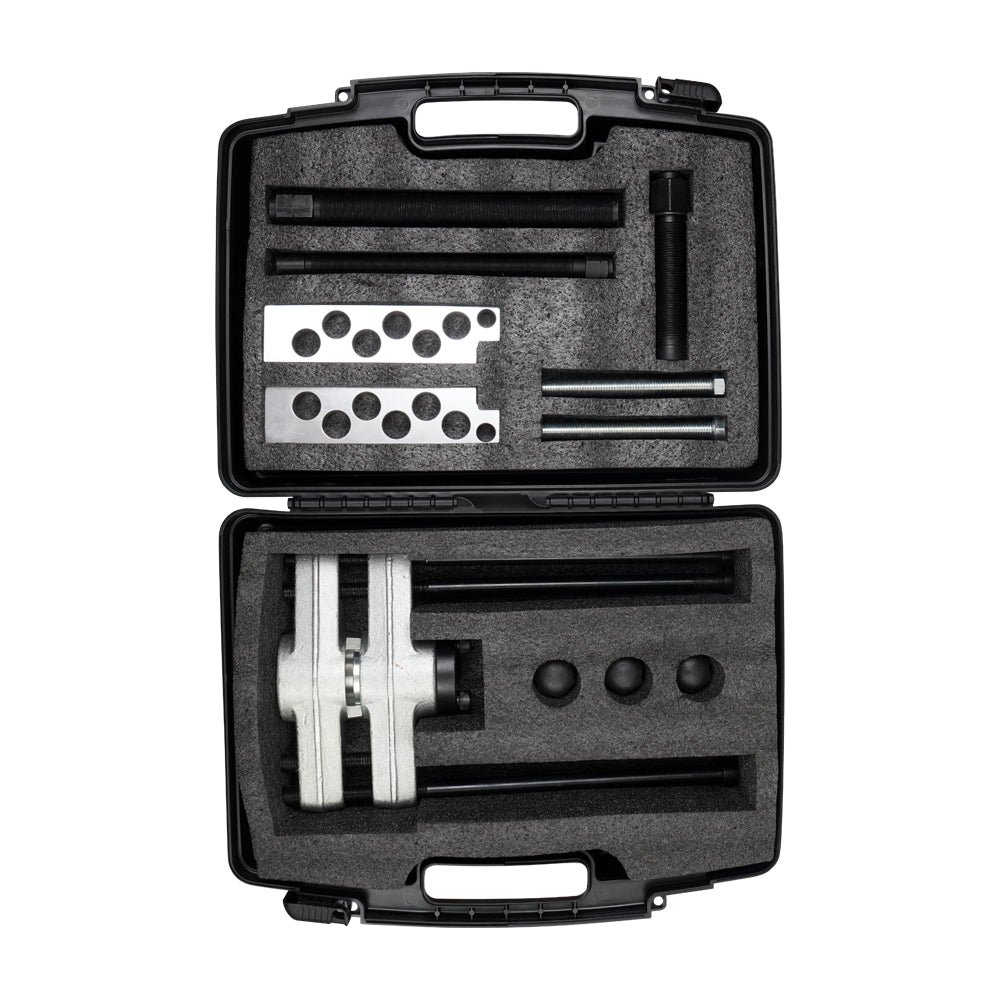

Comprehensive Service Kit: Our king pin press includes three different forcing screw options. giving you the ability to service everything from 3/4 ton pickups up to Class 8 trucks. A shortened 1 1/4” forcing screw allows you to access king pins from the hardest to reach places and tightest wheel wells – even on busses. We’ve also included our three most popular tie rod end removers: 7/8”. 3/4”. and 20mm.

Fitment:

Wide Compatibility:

Commonly found on class 3-8 trucks and equipment.
For use with Ram 3500/5500
For use with Chevrolet 3500/5500
For use with Ford F-350/550
For use with Isuzu NPR. for use with Kenworth
For use with Peterbilt. for use with Freightliner. for use with Mack. for use with Volvo. etc.
The 90150 works on straight and tapered king pins from 7/8” to 2 5/32”.
Please note that the 90150 is not compatible with FL981 axles where the tie rod is cast to the spindle.

Enhanced Capability:

For specialized applications. the King Pin Press (part number 90150) can be paired with an adapter for Isuzu NPR and GMC/Chevrolet W-series trucks (part number 90151). or the Clearance Plate Adapter for 2 1/2 inch King Pins (part number 90153). These optional adapters extend the tool’s utility. providing solutions for a broader range of maintenance challenges.

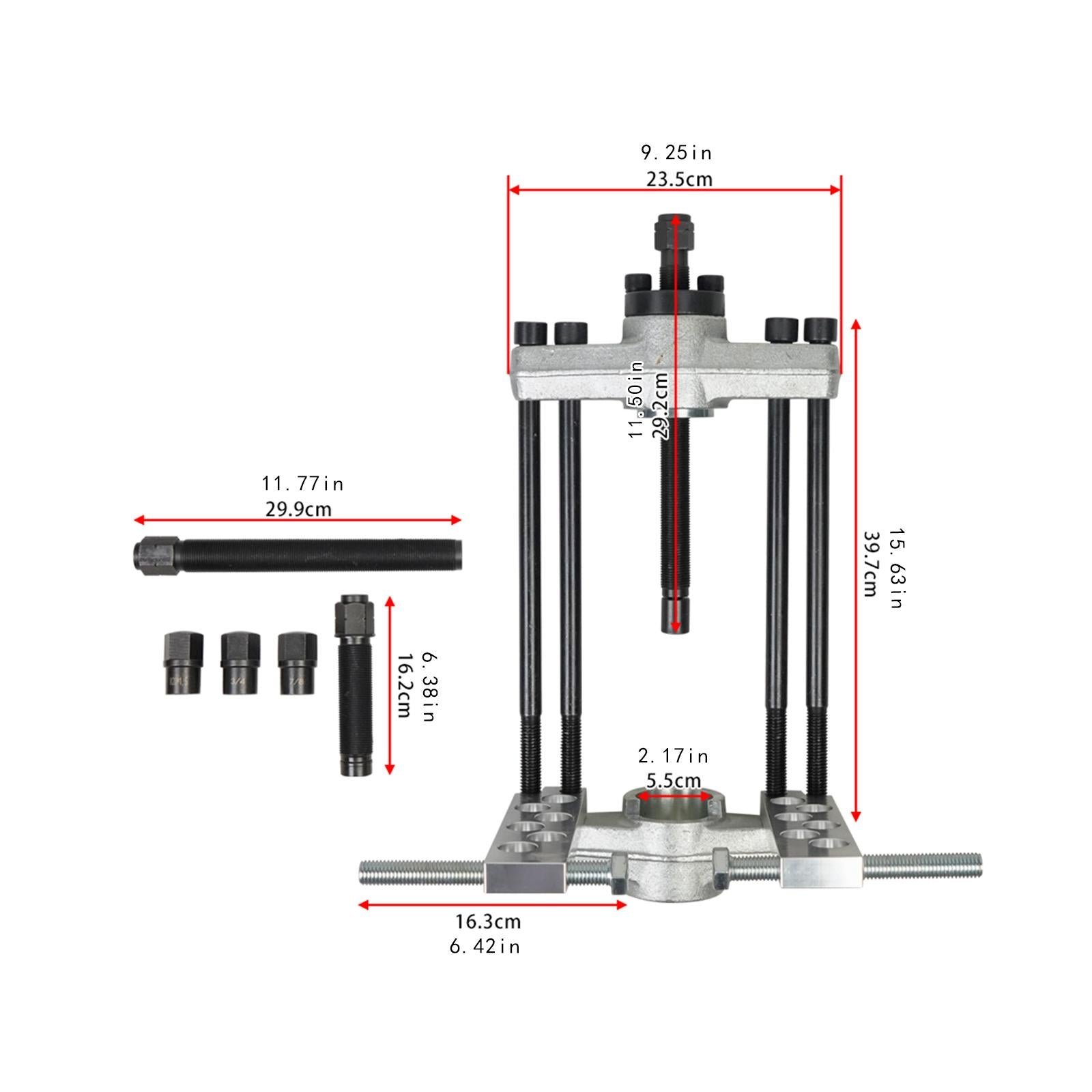

Specification:

Item Weight: 42 pounds

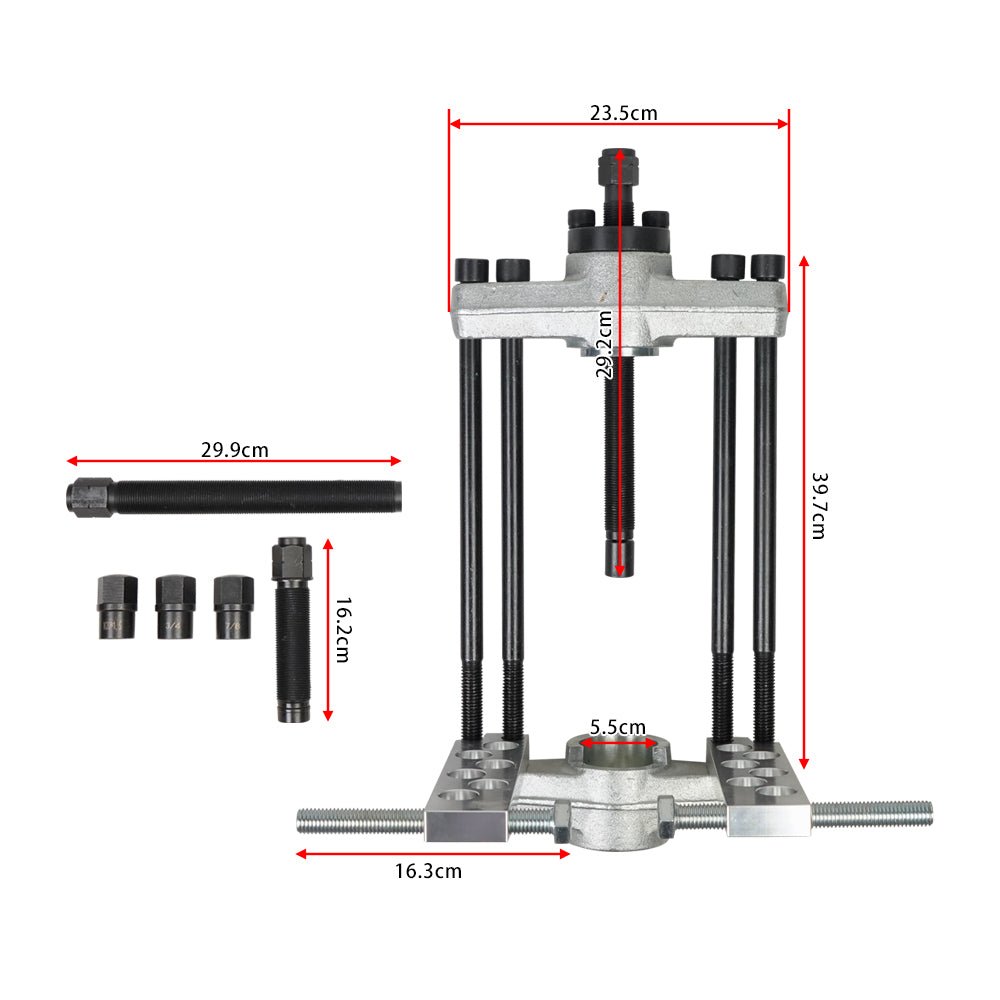

Product Dimensions: 20.5 x 6 x 17 inches
Item model number: ‎90150

Operating Instructions:

There are 3 forcing screws included with this kit:
The 0.875″ diameter forcing screw and reducer are used on king pins 1.25″ in diameter or smaller.
The 1.25″ diameter forcing screw (6″ length) is used on king pins 1.25″ in diameter or larger where there is limited space above the king pin. Once the short forcing screw has run out of travel exchange for 12″.
The 1.25″ diameter forcing screw (12″ length) is used on 1.25″ diameter or larger. Note: Both 1.25″ diameter forcing screws share the same anvil.

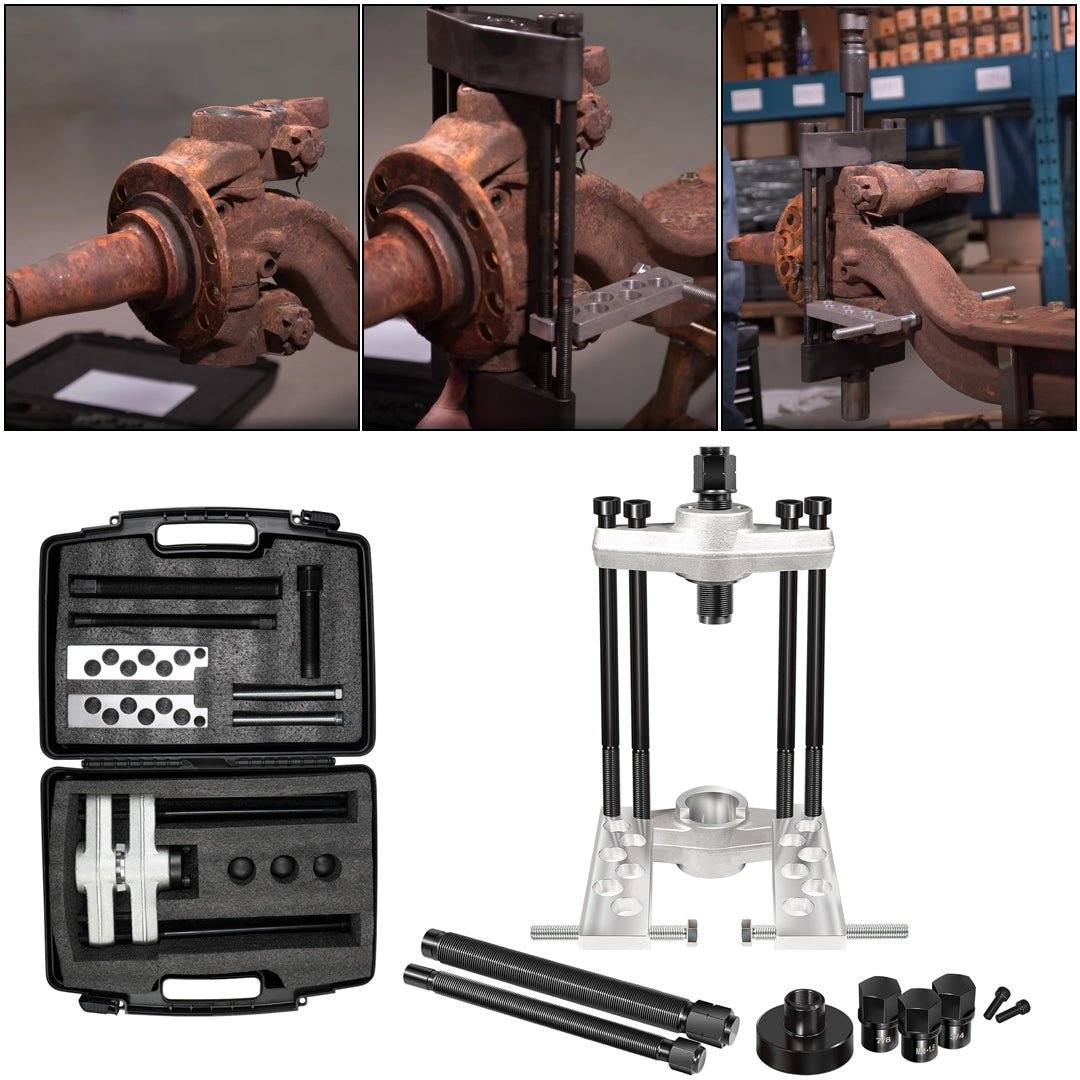

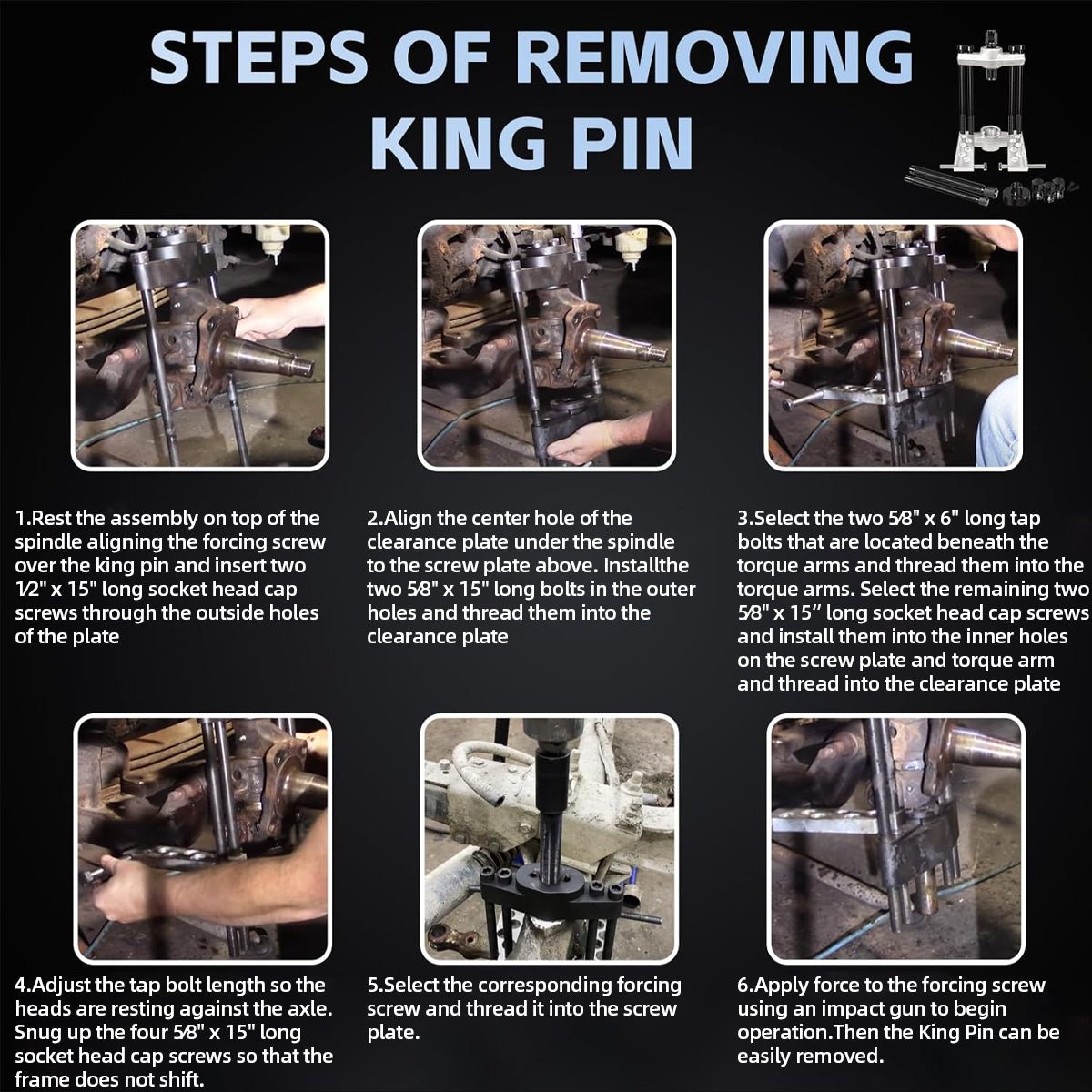

1 Select the corresponding forcing screw and thread it into the screw plate. Rest the assembly on top of the spindle aligning the forcing screw over the king pin.

2 Select the clearance plate and two 1⁄2″ x 15″ long socket head cap screws. Align the center hole of the clearance plate under the spindle to the screw plate above. Install the two 5⁄8″ x 15″ long bolts in the outer holes and thread them into the clearance plate.

3 Select the two 5⁄8″ x 6″ long tap bolts that are located beneath the torque arms and thread them into the torque arms as shown. Select the remaining two 5⁄8″ x 15” long socket head cap screws and install them into the inner holes on the screw plate and torque arm. and thread into the clearance plate.

4 Adjust the tap bolt length so the heads are resting against the axle. Snug up the four 5⁄8″ x 15″ long socket head cap screws so that the frame does not shift. Apply force to the forcing screw using an impact gun to begin operation.

Safety Warning & Cautions:
1. To ensure proper use. all required components. including four bolts. must be installed. Using only two bolts may result in insufficient strength. leading to potential breakage or bending.
2. For certain truck models where only two bolts can be used. it is essential to add metal brackets or spacers for proper support. Failure to do so may cause the bolts to bend.

Note:

1. KEEP WORK AREA CLEAN. Cluttered areas invite injuries;
2. ALWAYS SET PARKING BRAKE AND BLOCK TIRES;
3. USE EYE PROTECTION. Always wear approved impact safety glasses;
4. 10.000 psi LIMIT. Do not operate the hydraulic pump beyond the rated capacity;
5. STAY ALERT. Watch what you are doing. Use common sense! Do not operate this tool if you are unsure of its application and use; parts and accessories are available;
6. Dust caps should be used on couplers when not in use to avoid contaminants from entering the hydraulic cylinder and power source. This practice will help to extend the life of this product and ensure continued consistent operation.
7. For proper use. all required components must be installed. including four bolts. Using only two bolts may result in insufficient strength. leading to breakage or bending.
